Ultem PEI 2100-1000 / 2100-7301 | 10% Glass Fiber Reinforced PEI Resin
Price range: $21.80 through $24.80
Ultem PEI 2100-1000 is a 10% glass fiber reinforced amorphous polyetherimide (PEI) resin. It offers improved stiffness and strength over unfilled grades while retaining excellent thermal stability (Tg 217°C), inherent flame retardancy (UL94 V0 at 0.41 mm, 5VA at 1.9 mm), and outstanding dimensional stability. Ideal for structural components requiring high heat resistance and mechanical performance.
| Core Property | Value |
|---|---|
| Material Type | 10% Glass Fiber Reinforced PEI |
| Color | Natural / Black |
| Tensile Strength | 114-115 MPa (ASTM D638) |
| Flexural Modulus | 5170 MPa (ASTM D790) |
| HDT (1.82 MPa, 6.4 mm) | 208 °C (ASTM D648) |
| Flammability | UL94 V0 (0.41 mm), 5VA (1.9 mm) |
| Tg (Glass Transition) | 217 °C |
Overview
Ultem PEI 2100-1000 (SABIC Ultem 2100) is a 10% glass fiber reinforced polyetherimide resin. The addition of glass fiber significantly increases tensile strength, flexural modulus, and heat deflection temperature compared to unreinforced PEI. It maintains the inherent flame retardancy (UL94 V0 and 5VA listings) and excellent electrical insulation properties of the base polymer. The material is RoHS compliant and available in both natural (2100-1000) and black (2100-7301) colors. ISCC+ certified renewable bio-based solutions are also available for this grade.
Applications
-
Aerospace structural components
-
Automotive under-the-hood parts
-
Electrical and electronic connectors
-
High-temperature industrial equipment
-
5G infrastructure components
Detailed Technical Properties (based on SABIC Ultem 2100 datasheet)
| Property | Typical Value | Unit | Test Method |
|---|---|---|---|
| Mechanical | |||
| Tensile Stress (break, Type I) | 115 | MPa | ASTM D638 |
| Tensile Strain (break) | 6 | % | ASTM D638 |
| Tensile Modulus | 4680 | MPa | ASTM D638 |
| Flexural Stress (break) | 199 | MPa | ASTM D790 |
| Flexural Modulus | 5170 | MPa | ASTM D790 |
| Hardness, Rockwell M | 114 | – | ASTM D785 |
| Impact | |||
| Izod Impact, notched (23°C) | 53 | J/m | ASTM D256 |
| Izod Impact, unnotched (23°C) | 480 | J/m | ASTM D4812 |
| Izod Impact, Reverse Notched | 459 | J/m | ASTM D256 |
| Thermal | |||
| Vicat Softening Temp (B/50) | 223 | °C | ASTM D1525 |
| HDT (0.45 MPa, 6.4 mm) | 210 | °C | ASTM D648 |
| HDT (1.82 MPa, 6.4 mm) | 208 | °C | ASTM D648 |
| CTE (flow, -20°C to 150°C) | 3.0E-05 | 1/°C | ASTM E831 |
| Relative Temp Index (Elec/Mech) | 170 | °C | UL 746B |
| Physical | |||
| Specific Gravity | 1.34 | – | ASTM D792 |
| Flame Characteristics | |||
| UL94 Flammability | V0 (0.41 mm), 5VA (1.9 mm) | – | UL 94 |
Injection Molding Parameters (recommended)
| Parameter | Value |
|---|---|
| Drying Temperature | 150 °C |
| Drying Time | 4-6 hours |
| Melt Temperature | 350-400 °C |
| Mold Temperature | 135-165 °C |
| Back Pressure | 0.3-0.7 MPa |
Download PDF Product Datasheet

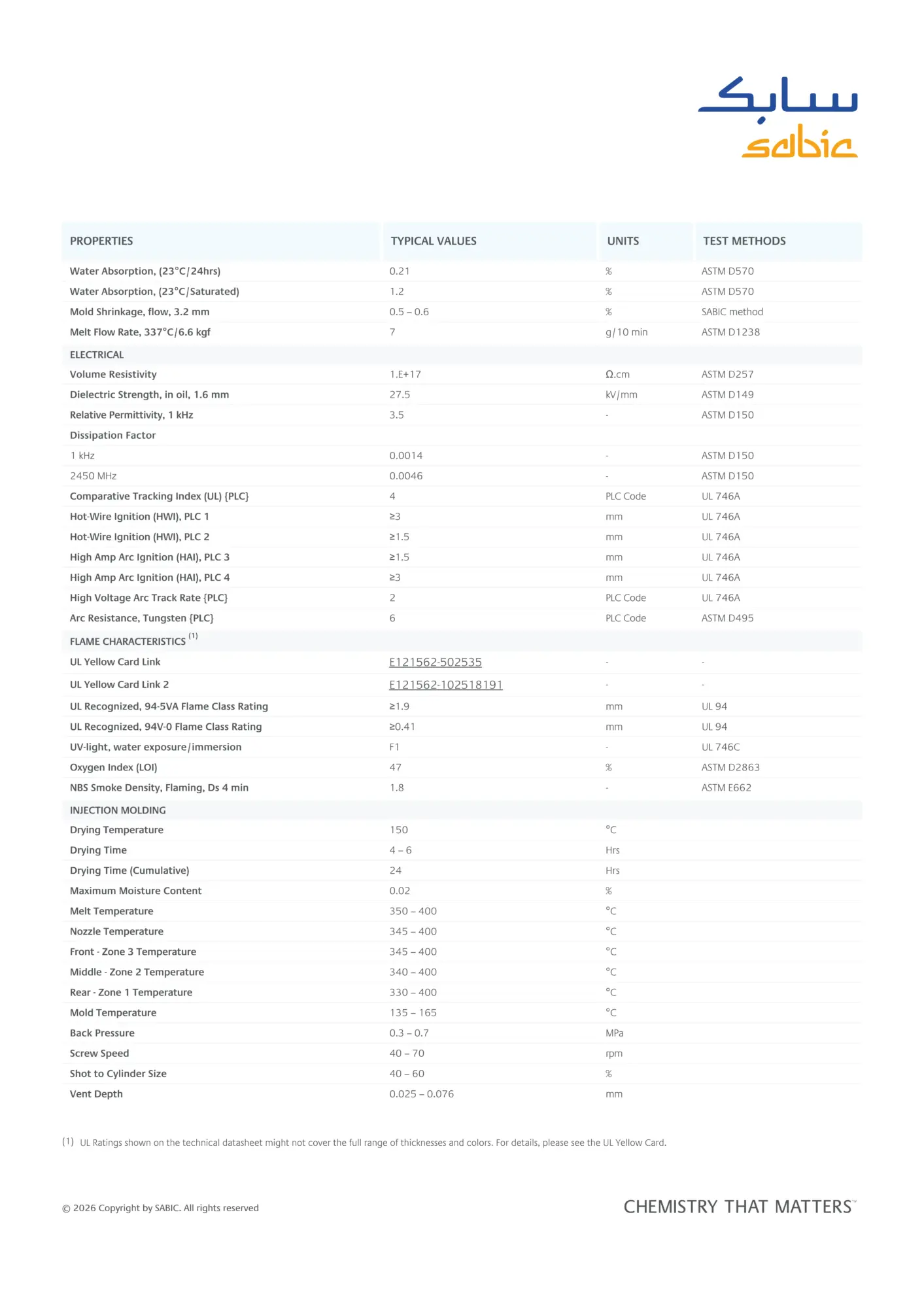

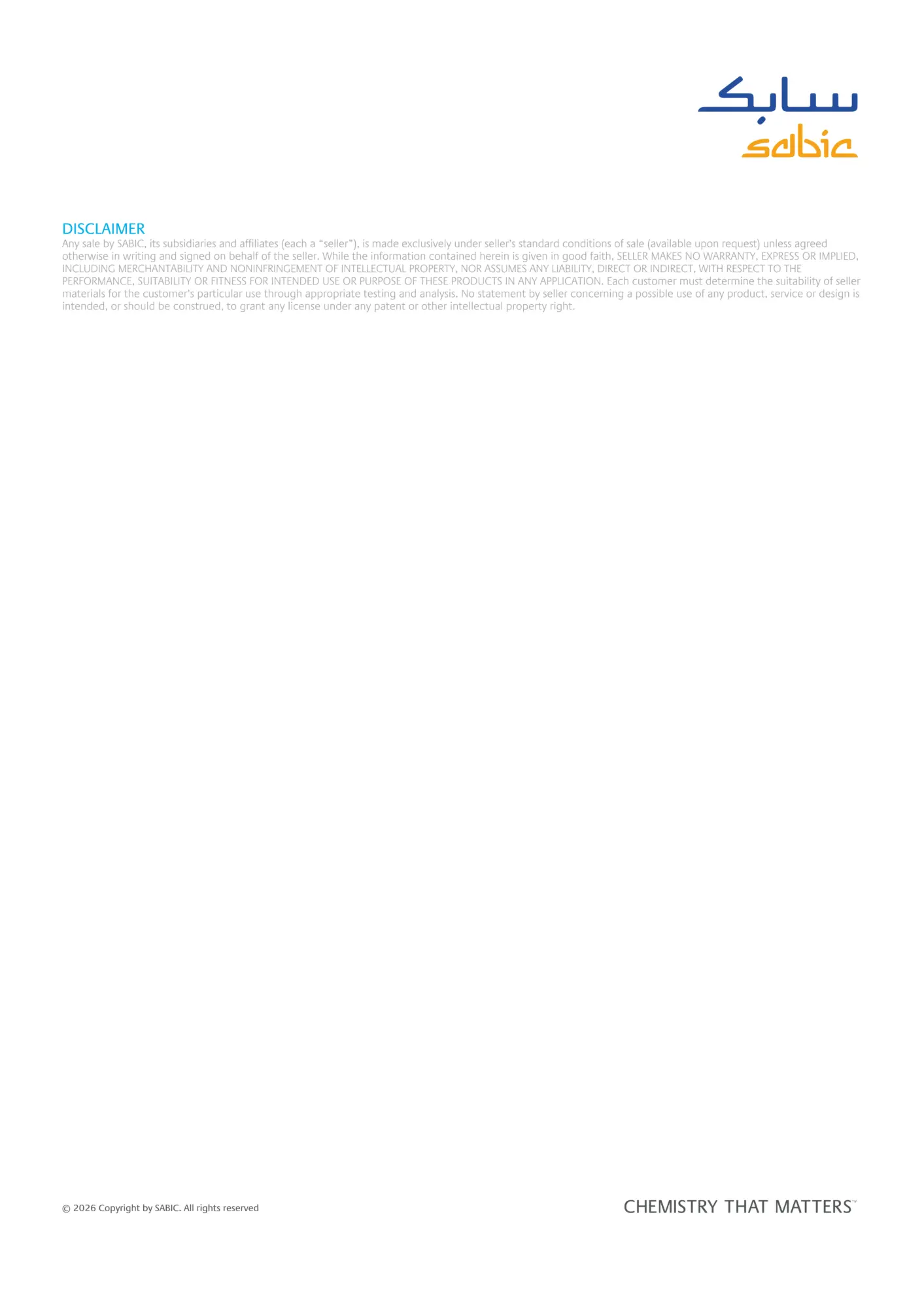

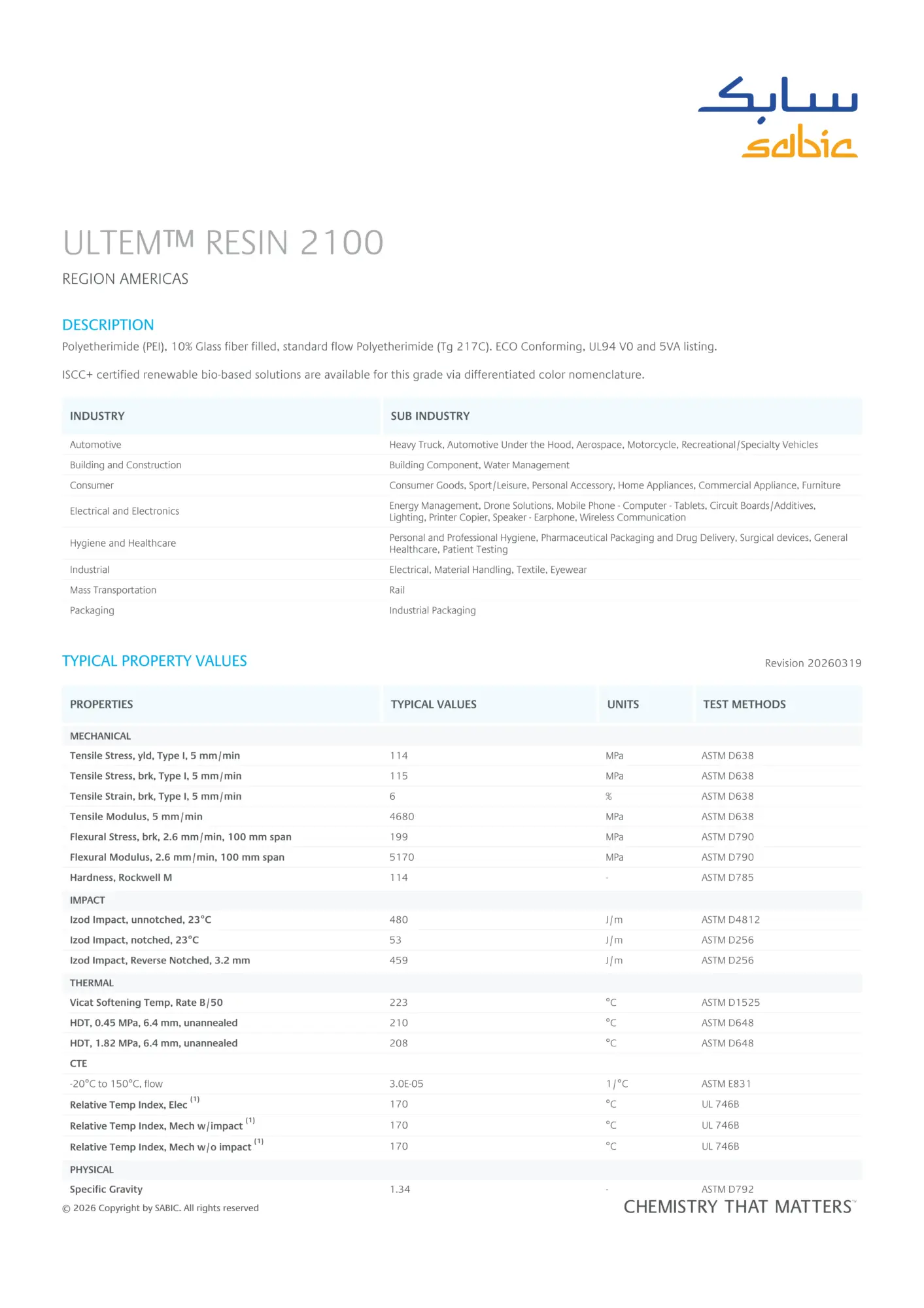

Download Ultem PEI 2100 Technical Datasheet (PDF)
Price & Ordering Information
Price:
Natural Color (Ultem PEI 2100-1000): 24.80 USD/kg
Black Version (Ultem PEI 2100-7301): 21.80 USD/kg
Minimum Order Quantity (MOQ): Please contact us for MOQ details.
Bulk Purchase Discount: Volume pricing available. Please inquire for a customized quote.
For MOQ, bulk discounts, and lead times, please contact our sales team.
Additional information
| Color | Ultem PEI 2100-1000 Natural, Ultem PEI 2100-7301 Black |
|---|
