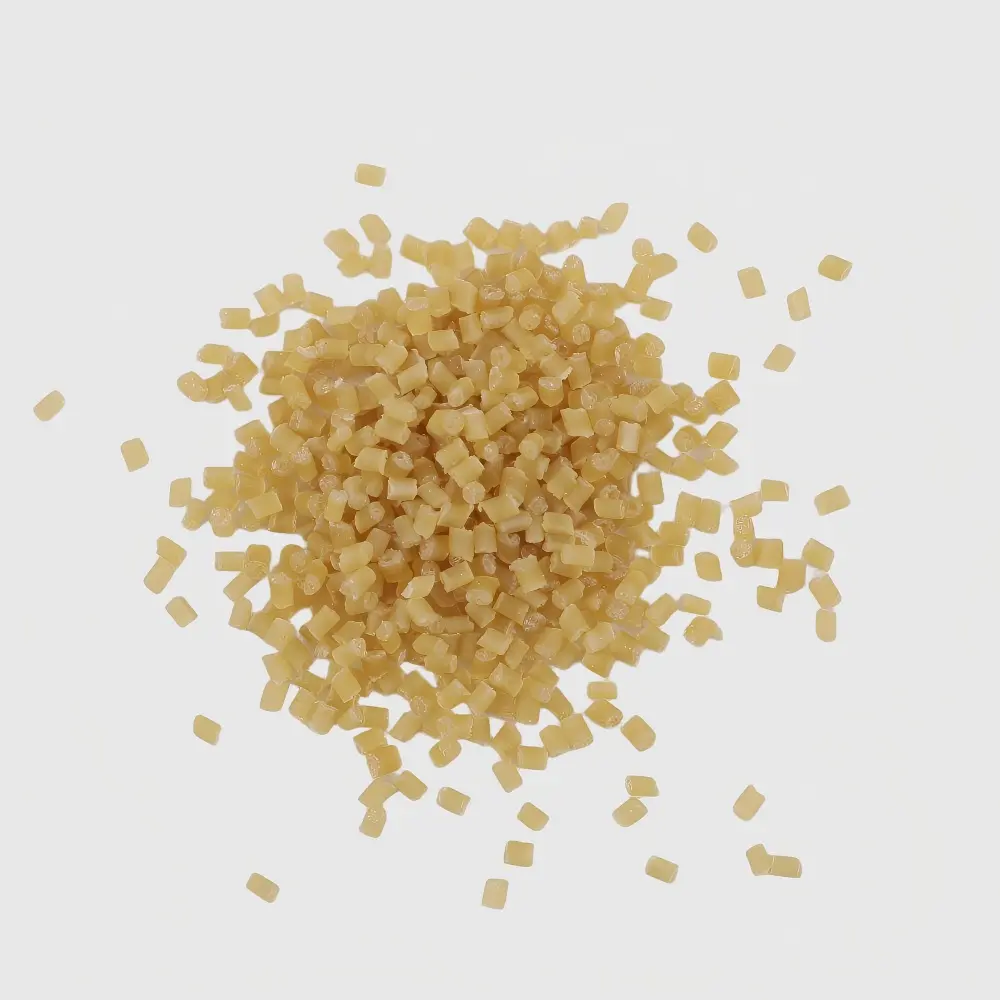

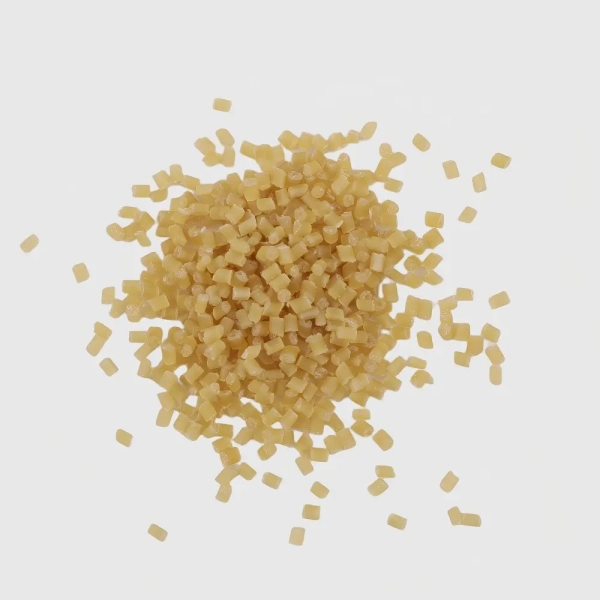

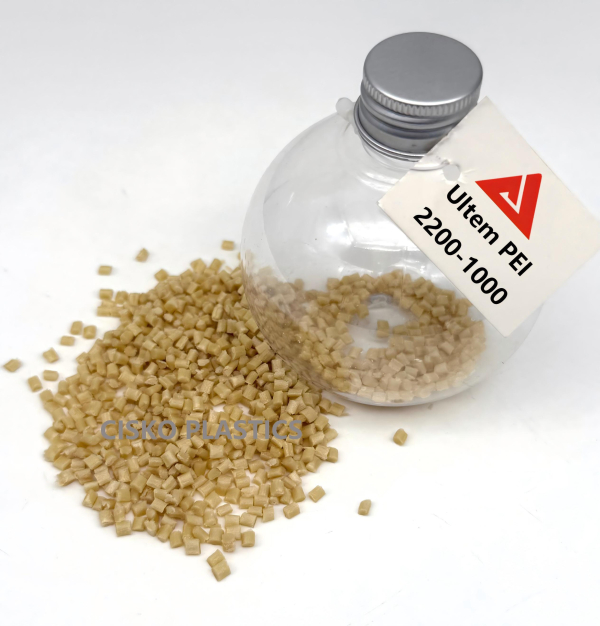

Ultem PEI 2200-1000 / 2200-7301 Reinforced PEI Resin
Price range: $21.80 through $22.00
Ultem PEI 2200-1000 is a 20% glass fiber reinforced amorphous polyetherimide (PEI) resin. It offers significantly increased stiffness, strength, and heat deflection temperature compared to unfilled grades, while retaining inherent flame retardancy (UL94 V0 at 0.41 mm, 5VA at 1.9 mm) and excellent dimensional stability. Ideal for metal replacement in high-temperature structural applications. Download Ultem PEI 2200 Technical Datasheet (PDF)
| Core Property | Value |
|---|---|
| Material Type | 20% Glass Fiber Reinforced PEI |
| Color | Natural / Black |
| Tensile Strength (break) | 131 MPa (ASTM D638) |
| Flexural Modulus | 6890 MPa (ASTM D790) |
| HDT (1.82 MPa, 6.4 mm) | 210 °C (ASTM D648) |
| Flammability | UL94 V0 (0.41 mm), 5VA (1.9 mm) |
| Tg (Glass Transition) | 217 °C |
Overview
Ultem PEI 2200-1000 (SABIC Ultem 2200) is a 20% glass fiber reinforced polyetherimide resin. The addition of 20% glass fiber dramatically improves tensile strength, flexural modulus, and creep resistance at elevated temperatures. It maintains the inherent flame retardancy (UL94 V0 and 5VA) and outstanding electrical insulation properties of the base polymer. The material is RoHS compliant, FAR 25.853 compliant for aerospace interiors, and available in natural (2200-1000) and black (2200-7301). ISCC+ certified renewable bio-based solutions are also available.
Applications
-
Aerospace structural brackets and housings
-
Automotive under-the-hood components (e.g., connectors, sensors)
-
High-temperature electrical and electronic parts
-
Industrial equipment requiring high stiffness and heat resistance
-
5G infrastructure components
Detailed Technical Properties (based on SABIC Ultem 2200 datasheet)
| Property | Typical Value | Unit | Test Method |
|---|---|---|---|
| Mechanical | |||
| Tensile Stress (break, Type I) | 131 | MPa | ASTM D638 |
| Tensile Strain (break) | 4 | % | ASTM D638 |
| Tensile Modulus | 6890 | MPa | ASTM D638 |
| Flexural Stress (break) | 227 | MPa | ASTM D790 |
| Flexural Modulus | 6890 | MPa | ASTM D790 |
| Hardness, Rockwell M | 114 | – | ASTM D785 |
| Impact | |||
| Izod Impact, notched (23°C) | 64 | J/m | ASTM D256 |
| Izod Impact, unnotched (23°C) | 480 | J/m | ASTM D4812 |
| Izod Impact, Reverse Notched | 464 | J/m | ASTM D256 |
| Thermal | |||
| Vicat Softening Temp (B/50) | 220 | °C | ASTM D1525 |
| HDT (0.45 MPa, 6.4 mm) | 210 | °C | ASTM D648 |
| HDT (1.82 MPa, 6.4 mm) | 210 | °C | ASTM D648 |
| CTE (flow, -20°C to 150°C) | 2.1E-05 | 1/°C | ASTM E831 |
| Relative Temp Index (Elec/Mech) | 170 | °C | UL 746B |
| Physical | |||
| Specific Gravity | 1.42 | – | ASTM D792 |
| Water Absorption (24hrs) | 0.19 | % | ASTM D570 |
| Mold Shrinkage (flow, 3.2 mm) | 0.3-0.5 | % | SABIC method |
| Melt Flow Rate (337°C/6.6kg) | 6 | g/10 min | ASTM D1238 |
| Electrical | |||
| Volume Resistivity | 7.0E+16 | Ω·cm | ASTM D257 |
| Dielectric Strength (1.6 mm, oil) | 26.3 | kV/mm | ASTM D149 |
| Relative Permittivity (1 kHz) | 3.5 | – | ASTM D150 |
| Dissipation Factor (1 kHz) | 0.0015 | – | ASTM D150 |
| Comparative Tracking Index (CTI) | 150+ | V | UL 746A |
| Flame Characteristics | |||
| UL Recognized, 94-5VA | ≥1.9 | mm | UL 94 |
| UL Recognized, 94V-0 | ≥0.41 | mm | UL 94 |
| Oxygen Index (LOI) | 50 | % | ASTM D2863 |
| FAR 25.853 Compliance | Yes | – | Aerospace |
| UV-light exposure | F1 | – | UL 746C |
Injection Molding Parameters (recommended)
| Parameter | Value |
|---|---|
| Drying Temperature | 150 °C |
| Drying Time | 4-6 hours |
| Melt Temperature | 350-400 °C |
| Mold Temperature | 135-165 °C |
| Back Pressure | 0.3-0.7 MPa |
| Screw Speed | 40-70 rpm |
Download PDF Product Datasheet
Download Ultem PEI 2200 Technical Datasheet (PDF)
Price & Ordering Information
Price:
-
Natural Color (Ultem PEI 2200-1000): 22.00 USD/kg
-

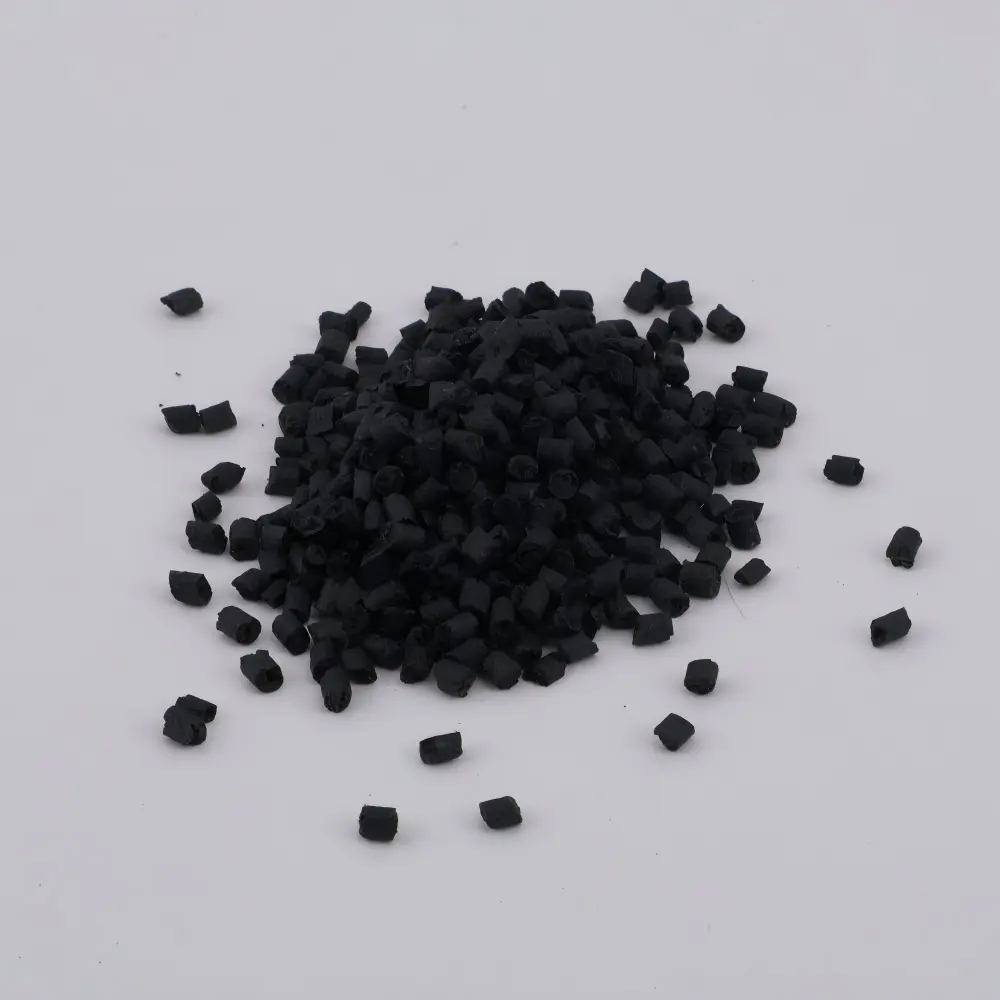

Black Version (Ultem PEI 2200-7301): 21.80 USD/kg
Minimum Order Quantity (MOQ): Please contact us for MOQ details.
Bulk Purchase Discount: Volume pricing available. Please inquire for a customized quote.
For MOQ, bulk discounts, and lead times, please contact our sales team.

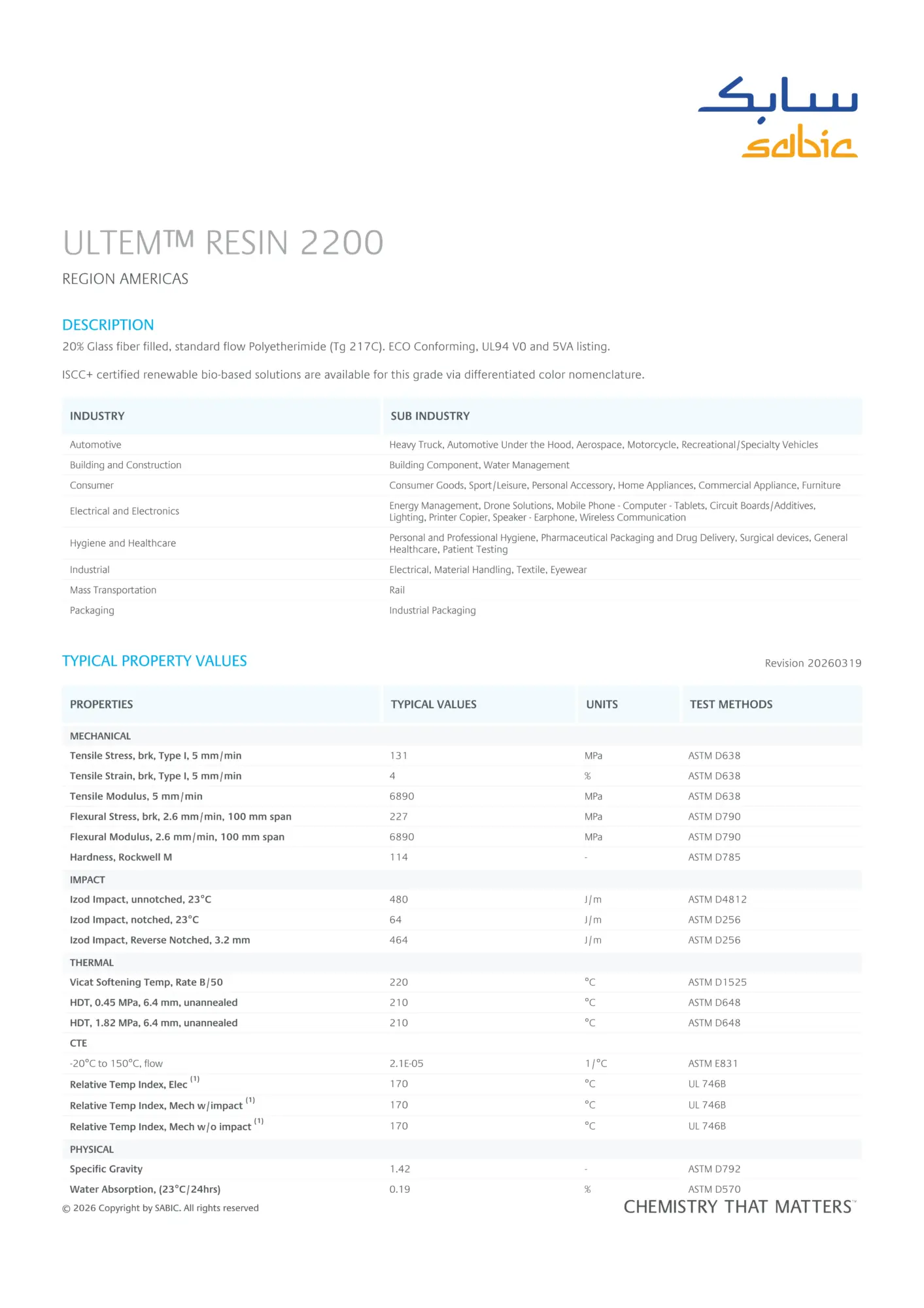

Pei Ultem 2200_01

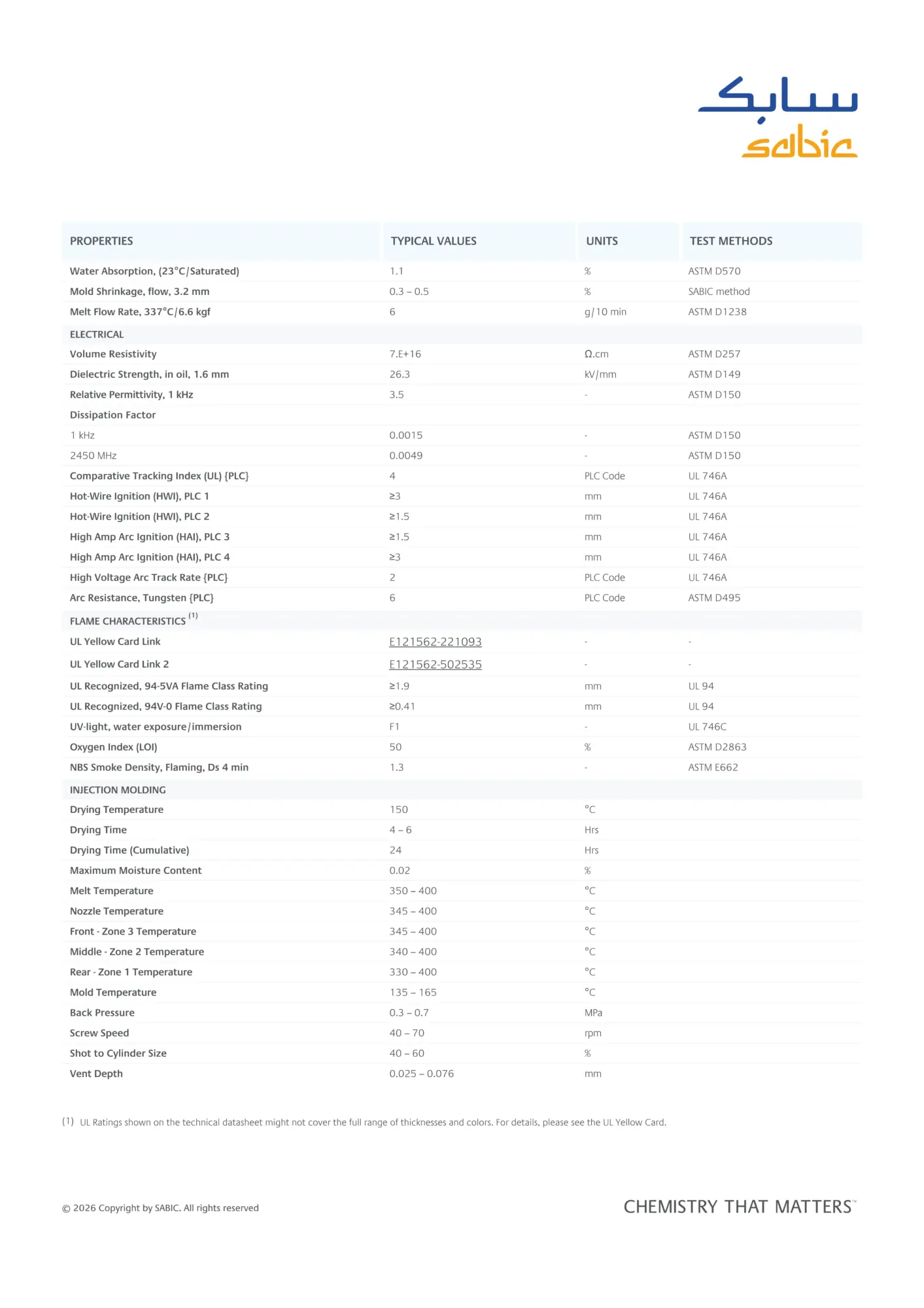

Pei Ultem 2200_02

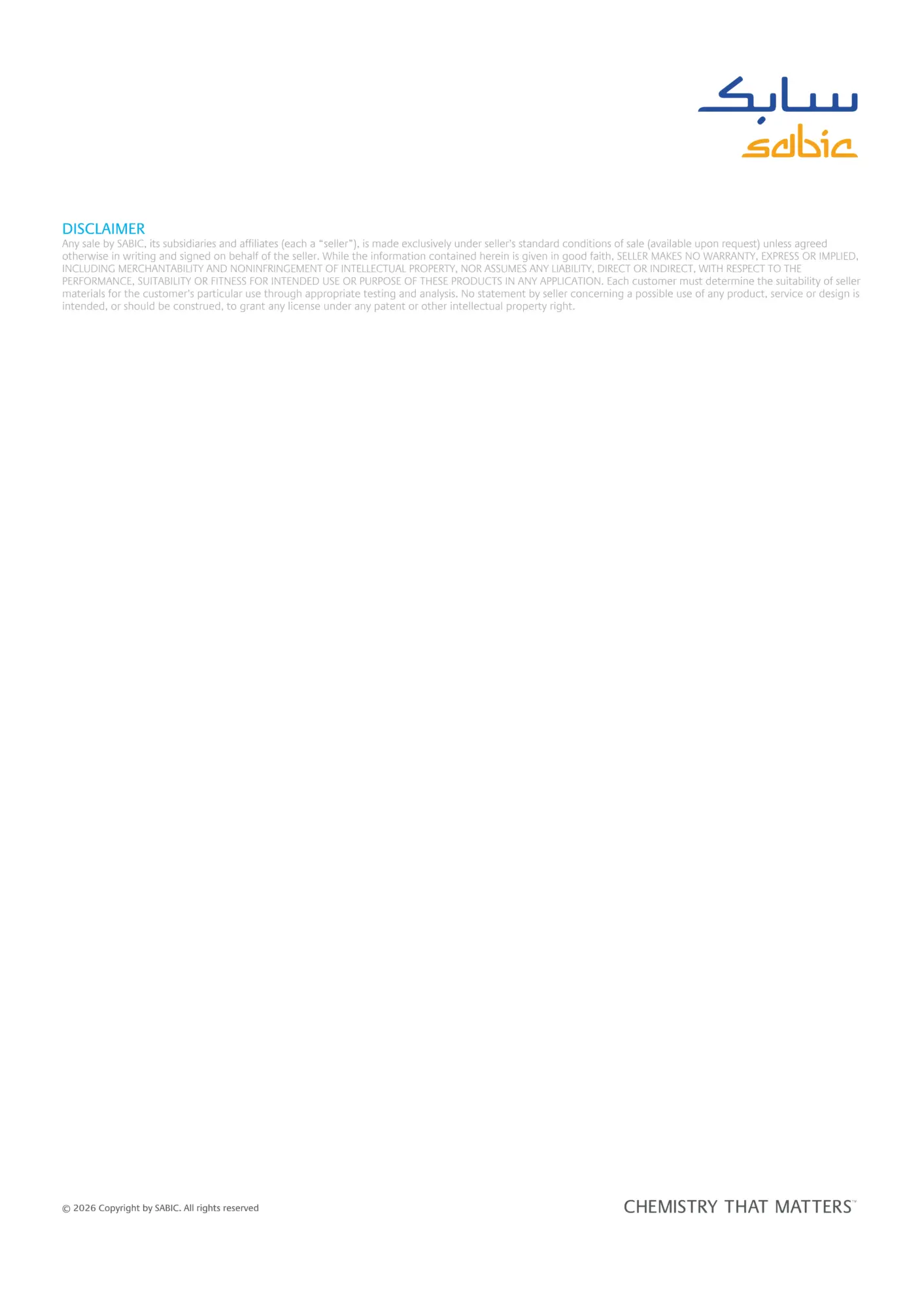

Pei Ultem 2200_03
Additional information
| Color | Ultem PEI 2200-1000 Natural, Ultem PEI 2200-7301 Black |
|---|
