Ultem PEI 2300-1000 / 2300-7301 | 30% Glass Fiber Reinforced PEI Resin
Price range: $21.80 through $25.00

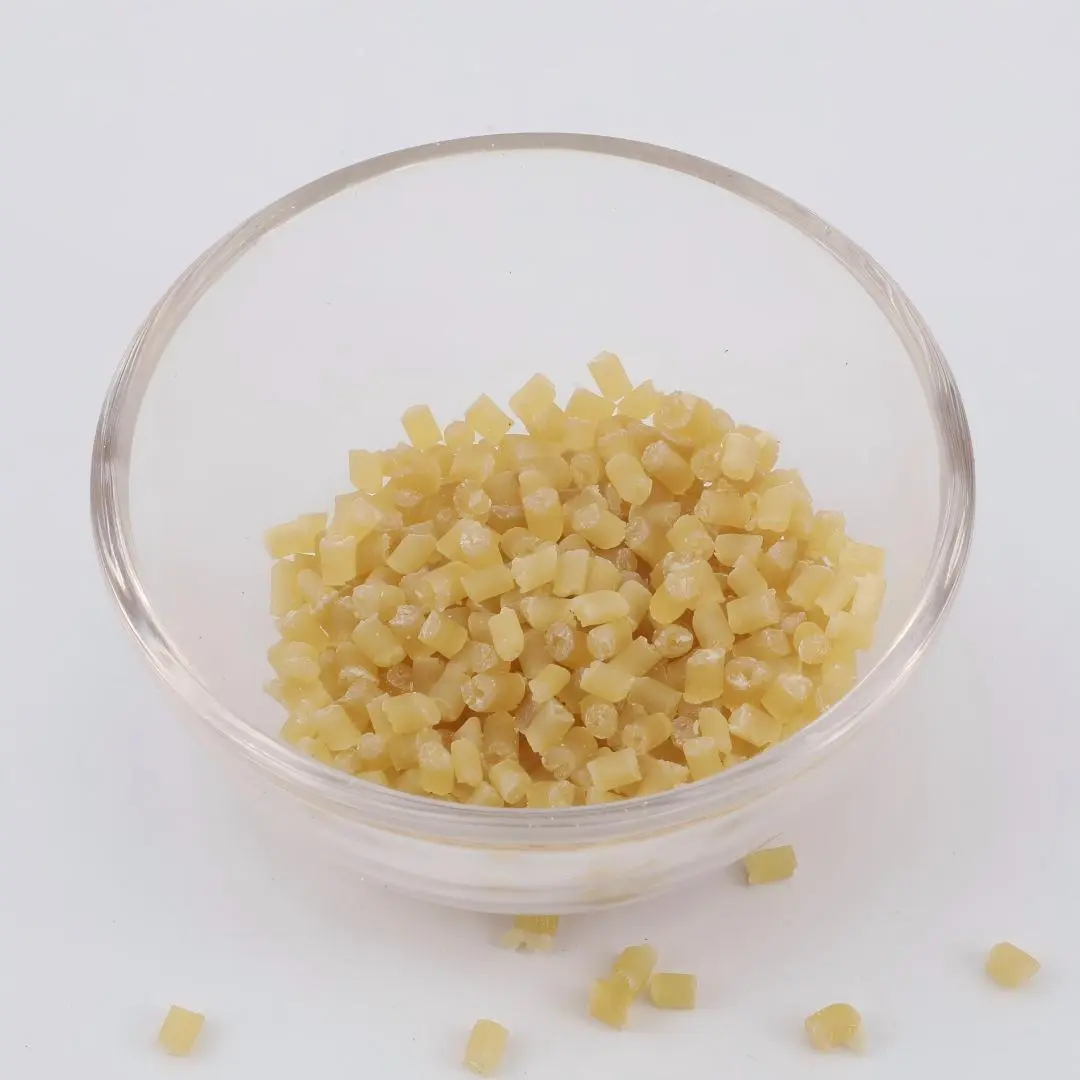

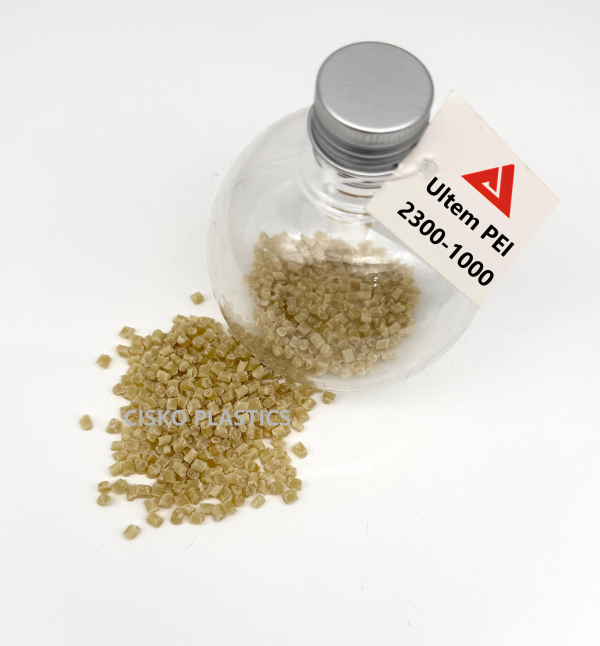

Ultem PEI 2300-1000 is a 30% glass fiber reinforced amorphous polyetherimide (PEI) resin. It offers the highest stiffness and strength in the Ultem series, with excellent thermal stability (Tg 217°C) and inherent flame retardancy (UL94 V0 at only 0.25 mm). Ideal for metal replacement in demanding structural applications.
| Core Property | Value |
|---|---|
| Material Type | 30% Glass Fiber Reinforced PEI |
| Color | Natural / Black |
| Tensile Strength | 175 MPa (ASTM D638) |
| Flexural Modulus | 9400–9700 MPa |
| HDT (1.82 MPa, 6.4 mm) | 210 °C |
| Flammability | UL94 V0 (0.25 mm), 5VA (1.2 mm) |
| Tg (Glass Transition) | 217 °C |
Overview
Ultem PEI 2300-1000 (SABIC Ultem 2300) is a 30% glass fiber reinforced polyetherimide resin. It provides exceptional tensile strength (175 MPa), flexural modulus (over 9,400 MPa), and heat deflection temperature (210°C). The material retains its mechanical properties up to 170°C (RTI). It is inherently flame retardant, achieving UL94 V0 at just 0.25 mm and 5VA at 1.2 mm – one of the thinnest V0 ratings available. The material is RoHS compliant, FAR 25.853 compliant, and available in natural (2300-1000) and black (2300-7301). ISCC+ certified bio‑based options are also available.
Applications
-
Aerospace structural brackets and seat components
-
Automotive under‑hood parts (high heat & chemical exposure)
-
High‑performance electrical connectors
-
Industrial pump housings and impellers
-
Metal replacement in thin‑wall, high‑stiffness parts
Detailed Technical Properties (based on SABIC Ultem 2300 datasheet)
| Property | Typical Value | Unit | Test Method |
|---|---|---|---|
| Mechanical | |||
| Tensile Stress (break, Type I) | 175 | MPa | ASTM D638 |
| Tensile Strain (break) | 2.5 | % | ASTM D638 |
| Tensile Modulus | 10400 | MPa | ASTM D638 |
| Flexural Stress (break) | 230-250 | MPa | ASTM D790 |
| Flexural Modulus | 9400-9700 | MPa | ASTM D790 |
| Hardness, Rockwell M | 114 | – | ASTM D785 |
| Impact | |||
| Izod Impact, notched (23°C) | 90 | J/m | ASTM D256 |
| Izod Impact, unnotched (23°C) | 600 | J/m | ASTM D4812 |
| Izod Impact, Reverse Notched | 470 | J/m | ASTM D256 |
| Thermal | |||
| Vicat Softening Temp (B/50) | 213 | °C | ISO 306 |
| HDT (1.82 MPa, 6.4 mm) | 210 | °C | ASTM D648 |
| CTE (flow, -20°C to 150°C) | 1.8E-05 | 1/°C | ASTM E831 |
| Relative Temp Index (Elec) | 180 | °C | UL 746B |
| Relative Temp Index (Mech w/o impact) | 180 | °C | UL 746B |
| Physical | |||
| Specific Gravity | 1.51 | – | ASTM D792 |
| Water Absorption (24hrs) | 0.16 | % | ASTM D570 |
| Mold Shrinkage (flow, 3.2 mm) | 0.2-0.4 | % | SABIC method |
| Melt Flow Rate (337°C/6.6kg) | 5 | g/10 min | ASTM D1238 |
| Electrical | |||
| Volume Resistivity | 1.0E+15-1.0E+16 | Ω·cm | IEC 60093 / ASTM D257 |
| Dielectric Strength (1.6 mm, oil) | 26-30 | kV/mm | IEC 60243-1 / ASTM D149 |
| Dielectric Constant (1 MHz) | 3.4-3.7 | – | IEC 60250 / ASTM D150 |
| Comparative Tracking Index (CTI) | 150 | V | IEC 60112 |
| Flame Characteristics | |||
| UL94 Flammability | V0 (0.25 mm), 5VA (1.2 mm) | – | UL 94 |
| Oxygen Index (LOI) | 48-54 | % | ISO 4589 / ASTM D2863 |
| FAR 25.853 Compliance | Yes | – | Aerospace |
Injection Molding Parameters
| Parameter | Value |
|---|---|
| Drying Temperature | 150 °C |
| Drying Time | 4-6 hours |
| Melt Temperature | 350-400 °C |
| Mold Temperature | 135-165 °C |
| Back Pressure | 0.3-0.7 MPa |
| Screw Speed | 40-70 rpm |
Download PDF Product Datasheet
Download Ultem PEI 2300 Technical Datasheet (PDF)
Price & Ordering Information
Price:
-
Natural Color (Ultem PEI 2300-1000): 25.00 USD/kg
-
Black Version (Ultem PEI 2300-7301): 21.80 USD/kg
Minimum Order Quantity (MOQ): Please contact us for MOQ details.
Bulk Purchase Discount: Volume pricing available. Please inquire for a customized quote.
For MOQ, bulk discounts, and lead times, please contact our sales team.
