Ultem PEI 2400-1000 / 2400-7301 | 40% Glass Fiber Reinforced PEI Resin
Price range: $23.20 through $42.00
Ultem PEI 2400-1000 is a 40% glass fiber reinforced amorphous polyetherimide (PEI) resin – the stiffest grade in the Ultem family. It delivers exceptional tensile strength (180 MPa), flexural modulus (>11,700 MPa), and heat deflection temperature (212°C). Inherently flame retardant (UL94 V0 at 0.25 mm, 5VA at 1.5 mm). Designed for metal replacement and high-load structural applications.
| Core Property | Value |
|---|---|
| Material Type | 40% Glass Fiber Reinforced PEI |
| Color | Natural / Black |
| Tensile Strength | 180 MPa (ISO 527) / 179 MPa (ASTM D638) |
| Flexural Modulus | 11720 MPa |
| HDT (1.82 MPa, 6.4 mm) | 212 °C |
| Flammability | UL94 V0 (0.25 mm), 5VA (1.5 mm) |
| Tg (Glass Transition) | 217 °C |
Overview

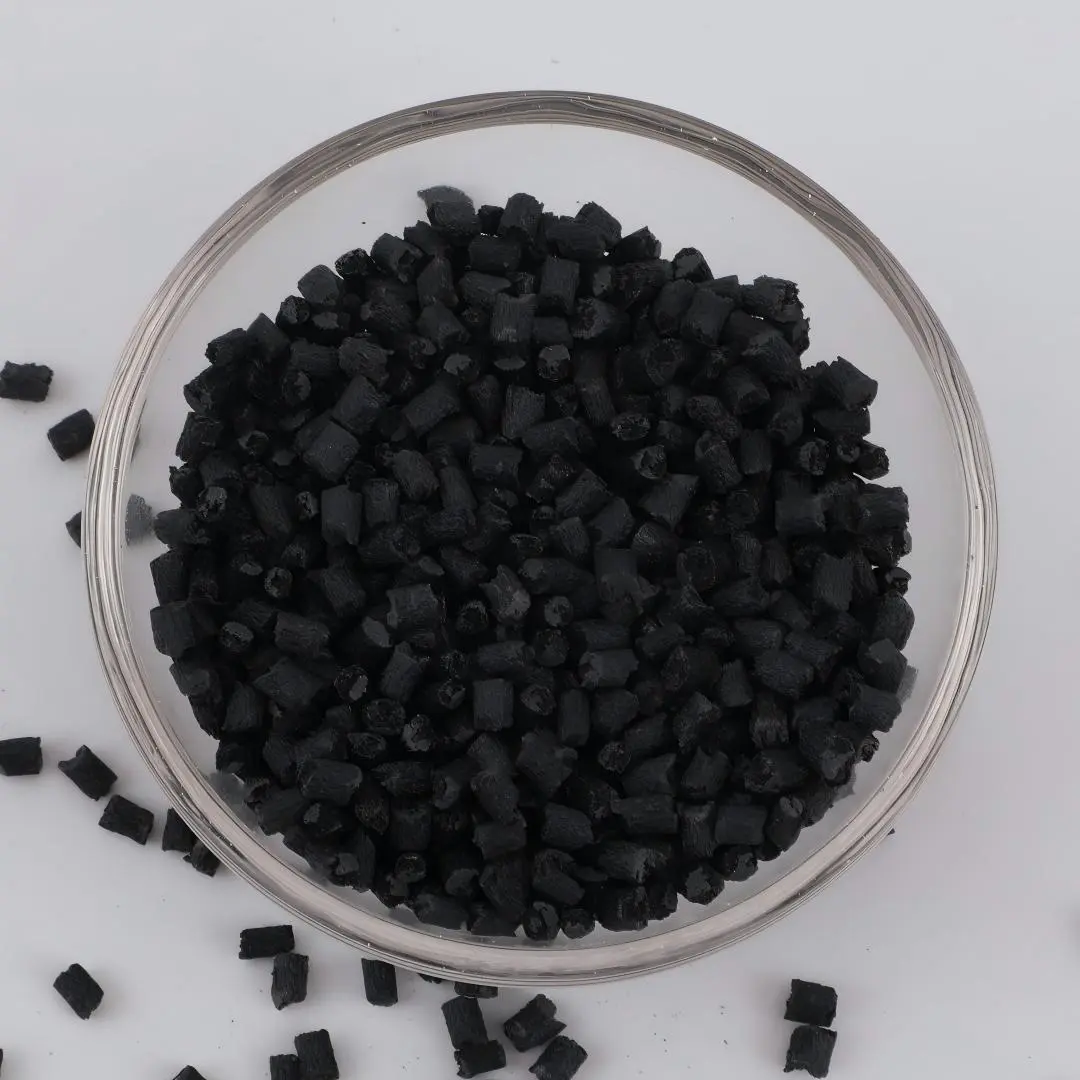

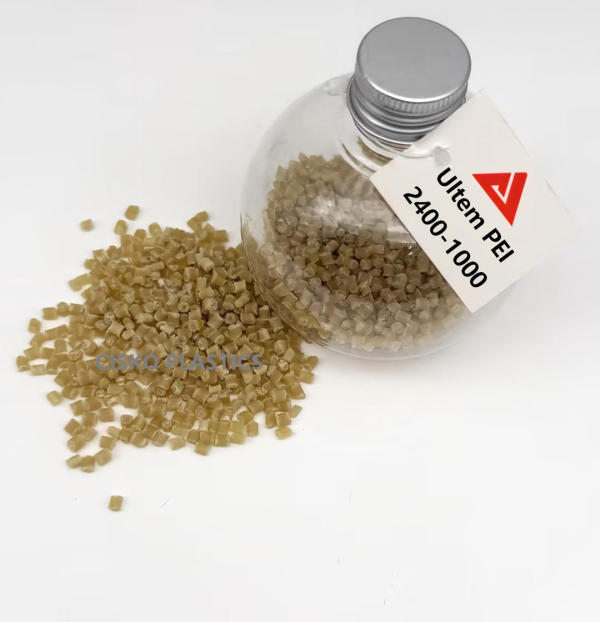

Ultem PEI 2400-1000 (SABIC Ultem 2400) is a 40% glass fiber reinforced polyetherimide resin offering the highest stiffness and strength among standard Ultem grades. With a flexural modulus exceeding 11,700 MPa, it approaches the rigidity of many metals while providing significant weight savings. The material retains excellent mechanical properties up to 170°C (RTI) and is inherently flame retardant, achieving UL94 V0 at just 0.25 mm and 5VA at 1.5 mm. It is RoHS compliant and available in natural (2400-1000) and black (2400-7301). ISCC+ certified bio‑based options are also available.
Applications
-
Aerospace structural brackets, ribs, and housings (highest stiffness required)
-
Automotive metal replacement (engine brackets, transmission components)
-
High‑load electrical connectors and relay housings
-
Industrial pump housings, impellers, and wear rings
-
Semiconductor equipment components
Detailed Technical Properties (based on SABIC Ultem 2400 datasheet)
| Property | Typical Value | Unit | Test Method |
|---|---|---|---|
| Mechanical | |||
| Tensile Stress (break, Type I) | 179-180 | MPa | ASTM D638 / ISO 527 |
| Tensile Strain (break) | 2.0-2.5 | % | ASTM D638 / ISO 527 |
| Tensile Modulus | 11500-11720 | MPa | ASTM D638 / ISO 527 |
| Flexural Stress (break) | 240-241 | MPa | ASTM D790 / ISO 178 |
| Flexural Modulus | 10000-11720 | MPa | ASTM D790 / ISO 178 |
| Hardness, Rockwell M | 114 | – | ASTM D785 |
| Taber Abrasion (CS-17, 1 kg) | 20 | mg/1000cy | SABIC method |
| Impact | |||
| Izod Impact, notched (23°C) | 112 | J/m | ASTM D256 |
| Izod Impact, unnotched (23°C) | 427 | J/m | ASTM D4812 |
| Izod Impact, Reverse Notched | 480 | J/m | ASTM D256 |
| Charpy Unnotched (23°C) | 40 | kJ/m² | ISO 179/1eU |
| Thermal | |||
| Vicat Softening Temp (B/50) | 217-234 | °C | ISO 306 / ASTM D1525 |
| HDT (1.82 MPa, 6.4 mm) | 212 | °C | ASTM D648 |
| HDT (0.45 MPa, 6.4 mm) | 215 | °C | ASTM D648 |
| CTE (flow, -20°C to 150°C) | 1.4E-05 | 1/°C | ASTM E831 |
| CTE (xflow, 23°C to 150°C) | 4.5E-05 | 1/°C | ISO 11359-2 |
| Thermal Conductivity | 0.33 | W/m-°C | ISO 8302 |
| Relative Temp Index (Elec) | 170 | °C | UL 746B |
| Relative Temp Index (Mech w/impact) | 170 | °C | UL 746B |
| Relative Temp Index (Mech w/o impact) | 170 | °C | UL 746B |
| Physical | |||
| Specific Gravity | 1.61 | – | ASTM D792 |
| Density | 1.61 | g/cm³ | ISO 1183 |
| Water Absorption (24hrs) | 0.13 | % | ASTM D570 |
| Water Absorption (saturated) | 0.8-0.9 | % | ISO 62 / ASTM D570 |
| Moisture Absorption (50% RH) | 0.4 | % | ISO 62 |
| Mold Shrinkage (flow, 3.2 mm) | 0.1-0.3 | % | SABIC method |
| Melt Flow Rate (337°C/6.6kg) | 4.2 | g/10 min | ASTM D1238 |
| Melt Volume Rate (360°C/5kg) | 5 | cm³/10 min | ISO 1133 |
| Electrical | |||
| Volume Resistivity | 1.5E+16 | Ω·cm | ASTM D257 |
| Dielectric Strength (1.6 mm, oil) | 24-26 | kV/mm | ASTM D149 / IEC 60243-1 |
| Relative Permittivity (1 kHz) | 3.7 | – | ASTM D150 |
| Relative Permittivity (50/60 Hz) | 3.5 | – | IEC 60250 |
| Dissipation Factor (1 kHz) | 0.002 | – | ASTM D150 |
| Comparative Tracking Index (UL) | 150-175 | V | UL 746A / IEC 60112 |
| Flame Characteristics | |||
| UL94 Flammability | V0 (0.25 mm), 5VA (1.5 mm) | – | UL 94 |
| Oxygen Index (LOI) | 48-54 | % | ISO 4589 / ASTM D2863 |
| NBS Smoke Density (Flaming, Ds 4 min) | 1 | – | ASTM E662 |
| Glow Wire Ignitability (1.0 mm) | 850 | °C | IEC 60695-2-13 |
| Glow Wire Flammability (1.0 mm) | 960 | °C | IEC 60695-2-12 |
Injection Molding Parameters
| Parameter | Value |
|---|---|
| Drying Temperature | 150 °C |
| Drying Time | 4-6 hours |
| Melt Temperature | 350-400 °C |
| Mold Temperature | 135-165 °C |
| Back Pressure | 0.3-0.7 MPa |
| Screw Speed | 40-70 rpm |
Download PDF Product Datasheet
Download Ultem PEI 2400 Technical Datasheet (PDF)
Price & Ordering Information
Price:
-
Natural Color (Ultem PEI 2400-1000): 23.20 USD/kg
-
Black Version (Ultem PEI 2400-7301): 21.80 USD/kg
Minimum Order Quantity (MOQ): Please contact us for MOQ details.
Bulk Purchase Discount: Volume pricing available. Please inquire for a customized quote.
For MOQ, bulk discounts, and lead times, please contact our sales team.
Additional information
| Color | Ultem PEI 2400-1000 Natural, Ultem PEI 2400-7301 Black |
|---|
