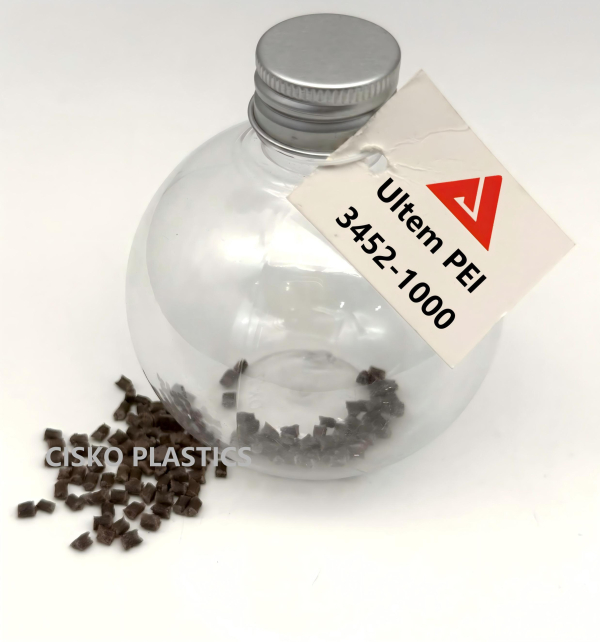

Ultem PEI 3452-1000 / 3452-7301 | 45% Glass & Mineral Filled PEI Resin
Original price was: $36.00.$18.00Current price is: $18.00.

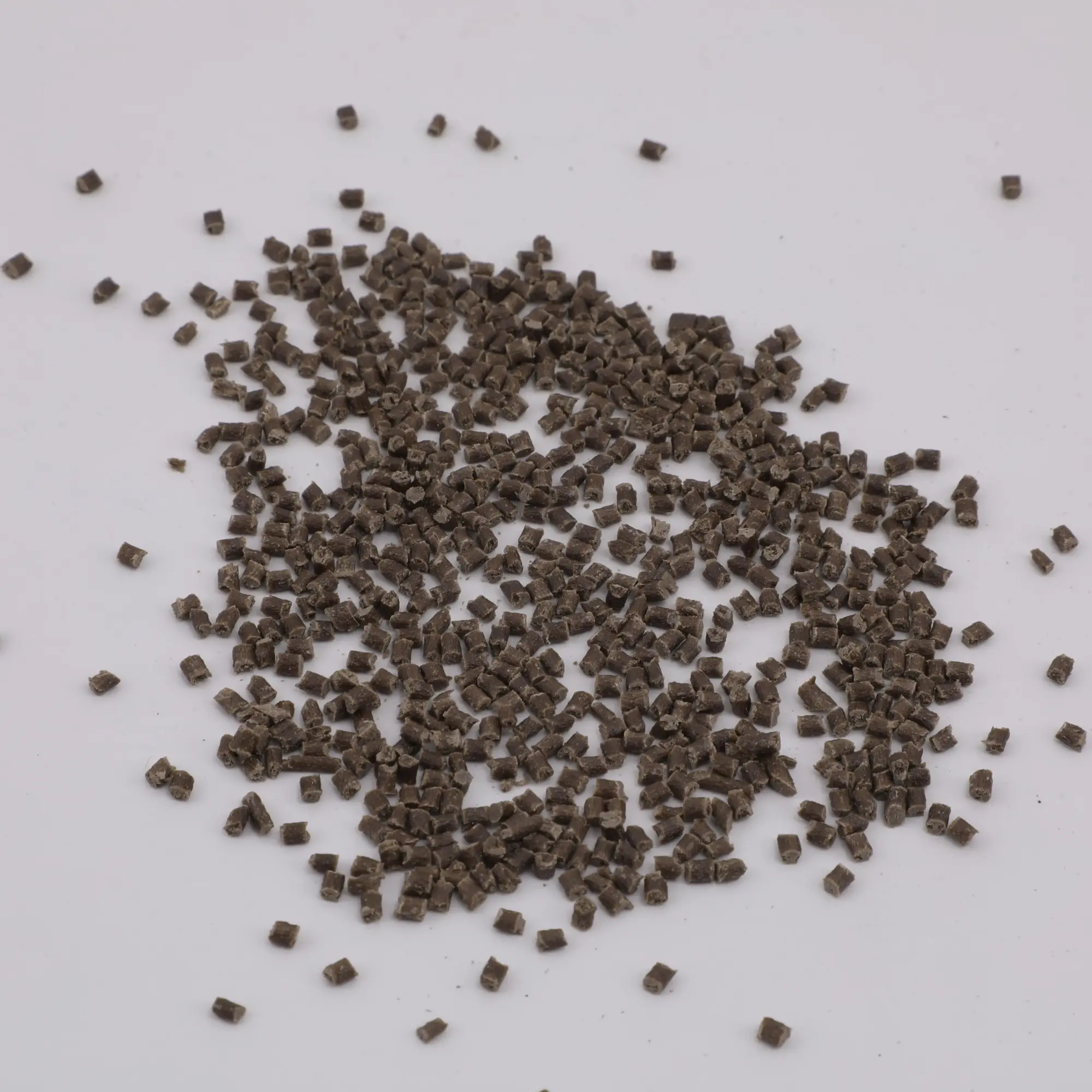

Ultem PEI 3452-1000 is a 45% glass fiber and mineral filled amorphous polyetherimide (PEI) resin designed for exceptional dimensional stability and low warpage. It offers high stiffness (flexural modulus 12,410 MPa), excellent heat resistance (HDT 212°C), and inherent flame retardancy (UL94 V0 & 5VA). Enhanced flow allows molding of complex, precision parts.
| Core Property | Value |
|---|---|
| Material Type | 45% Glass + Mineral Filled PEI |
| Color | Natural / Black |
| Tensile Strength | 131 MPa (ASTM D638) |
| Flexural Modulus | 12410 MPa (ASTM D790) |
| HDT (1.82 MPa, 6.4 mm) | 212 °C |
| Flammability | UL94 V0 & 5VA |
| Mold Shrinkage (flow) | 0.15-0.25% |
| Tg | 217 °C |
Overview

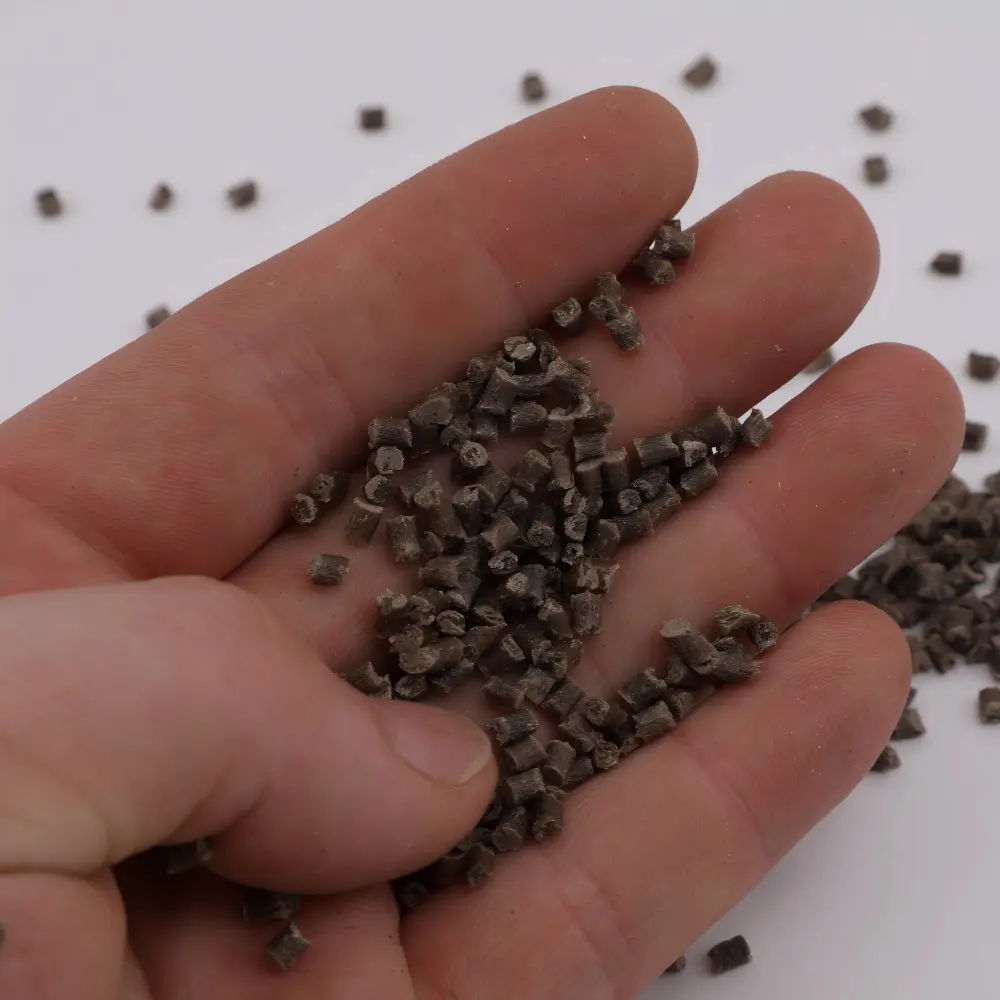

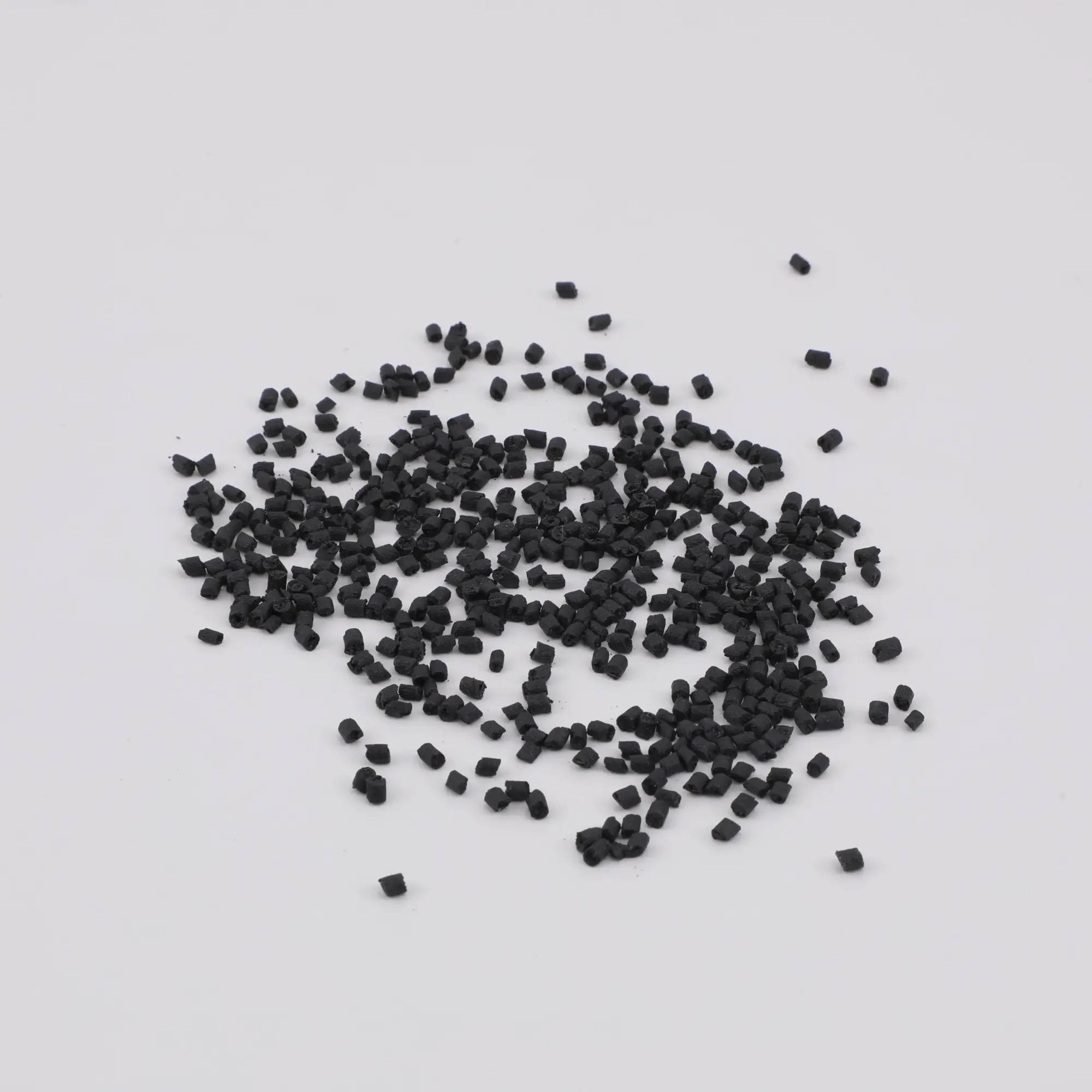

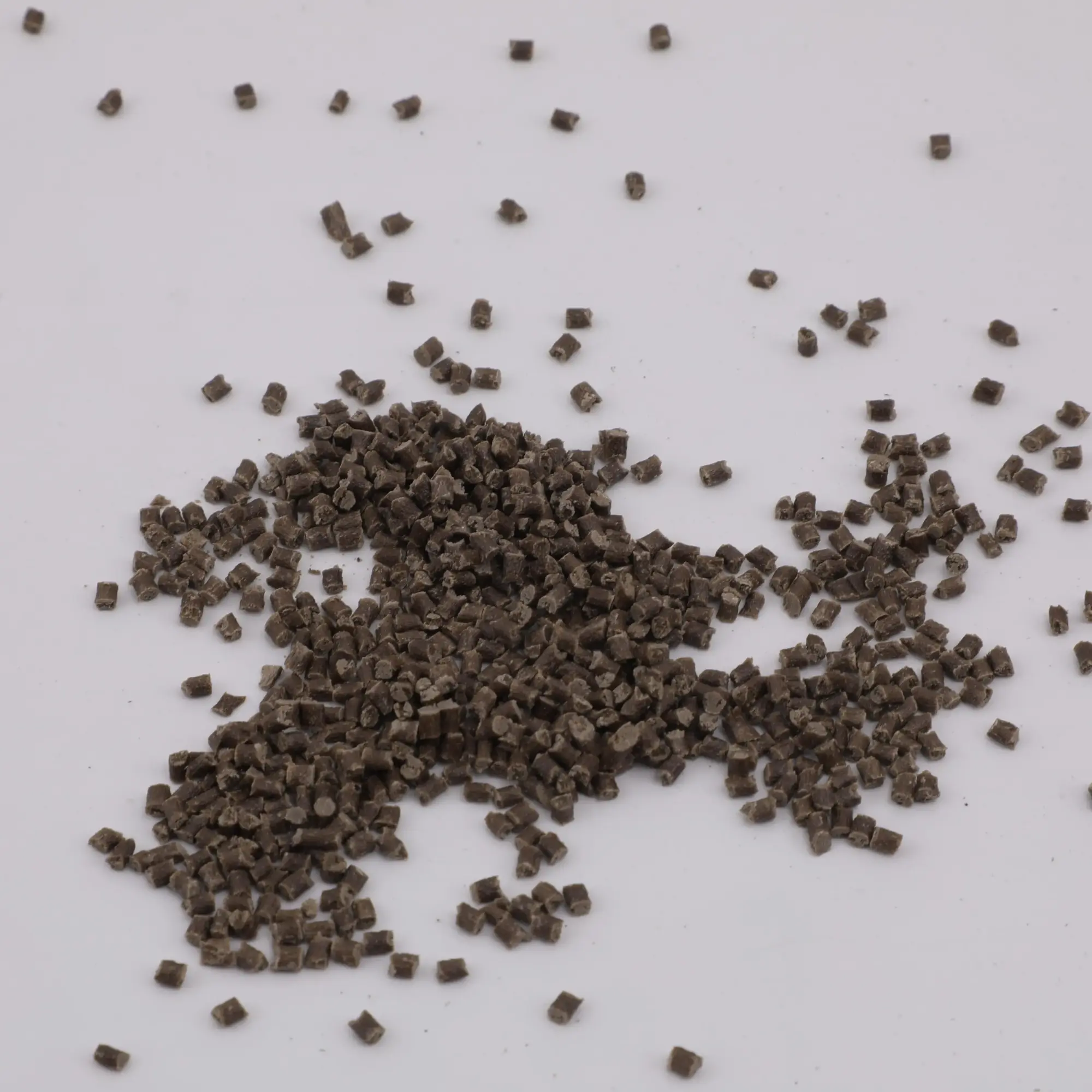

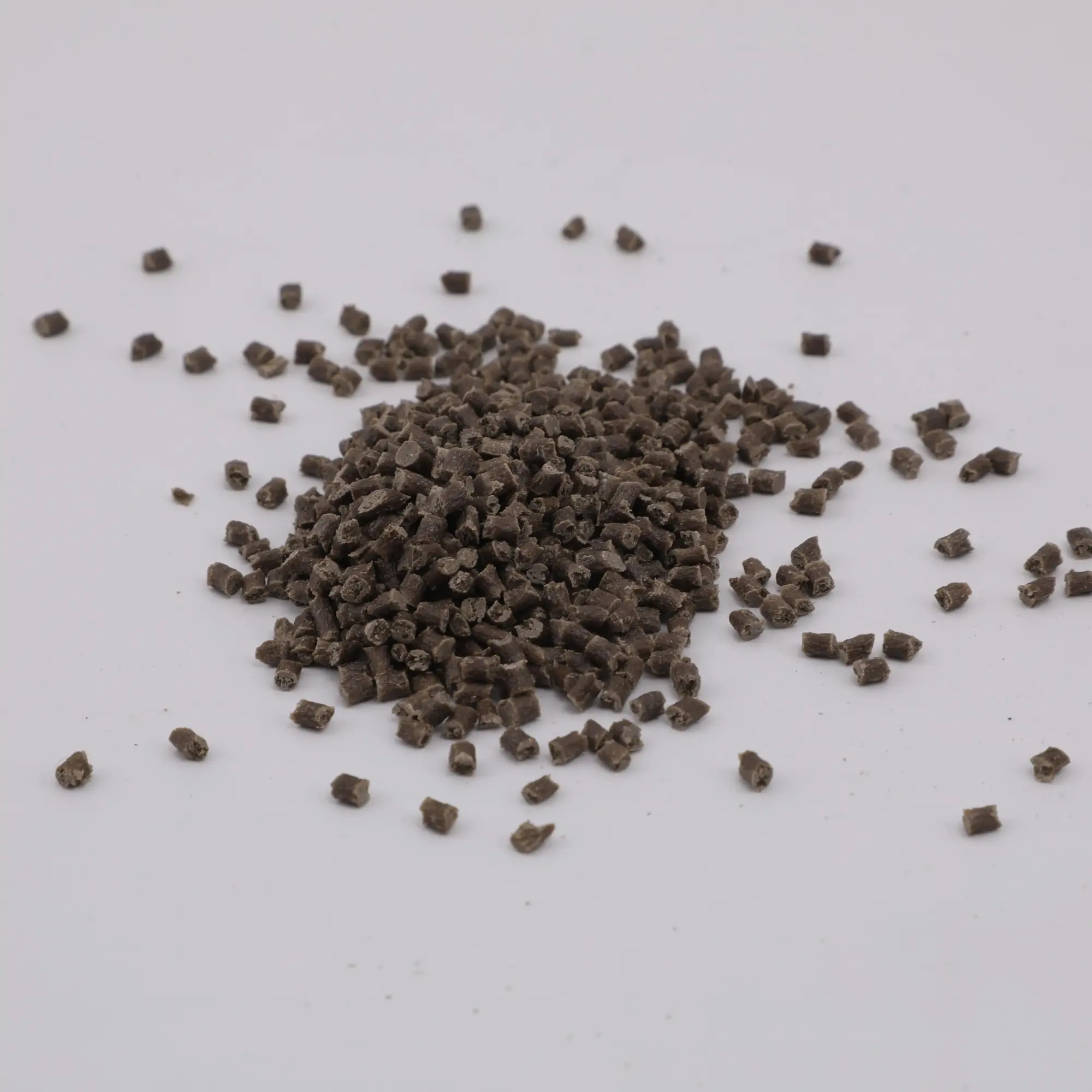

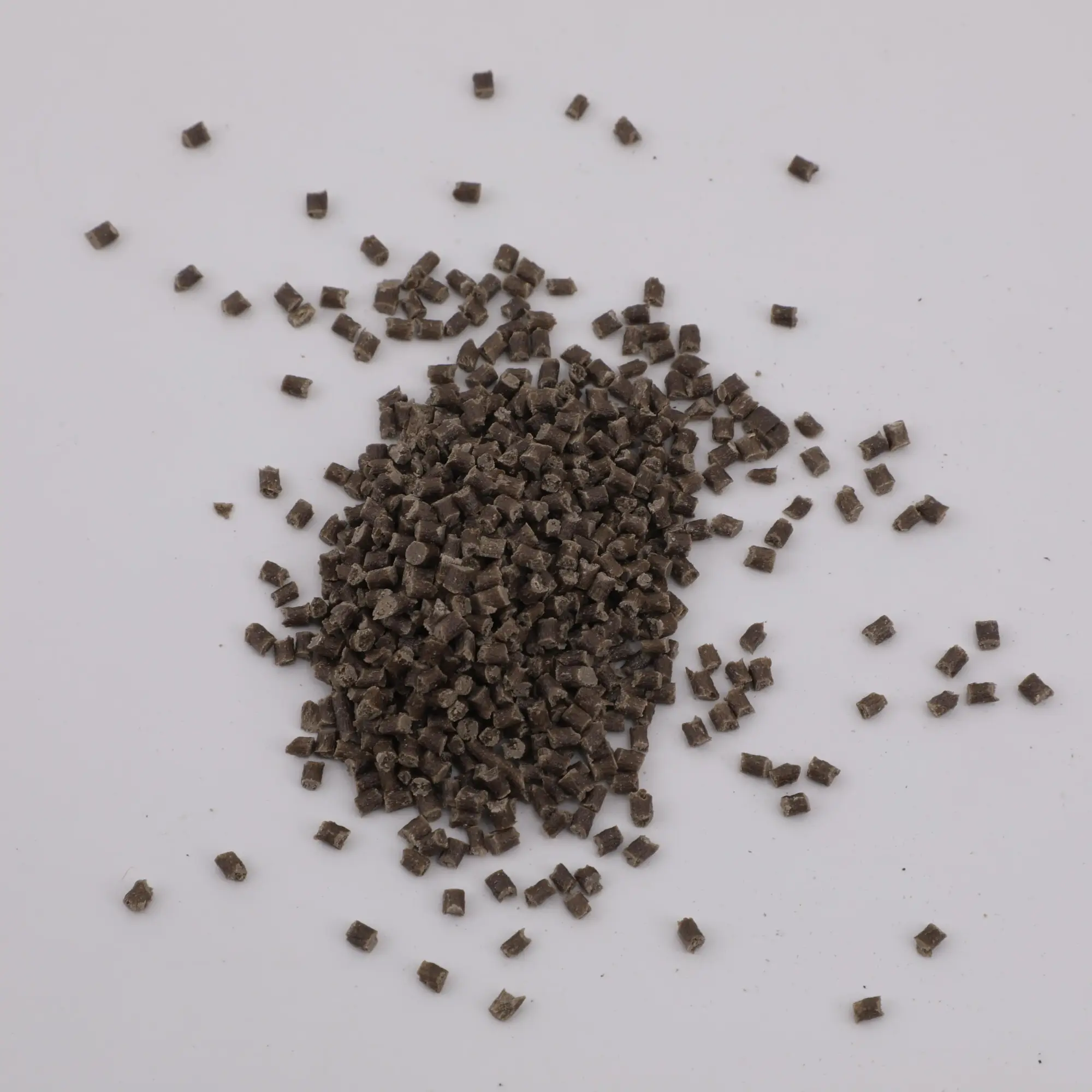

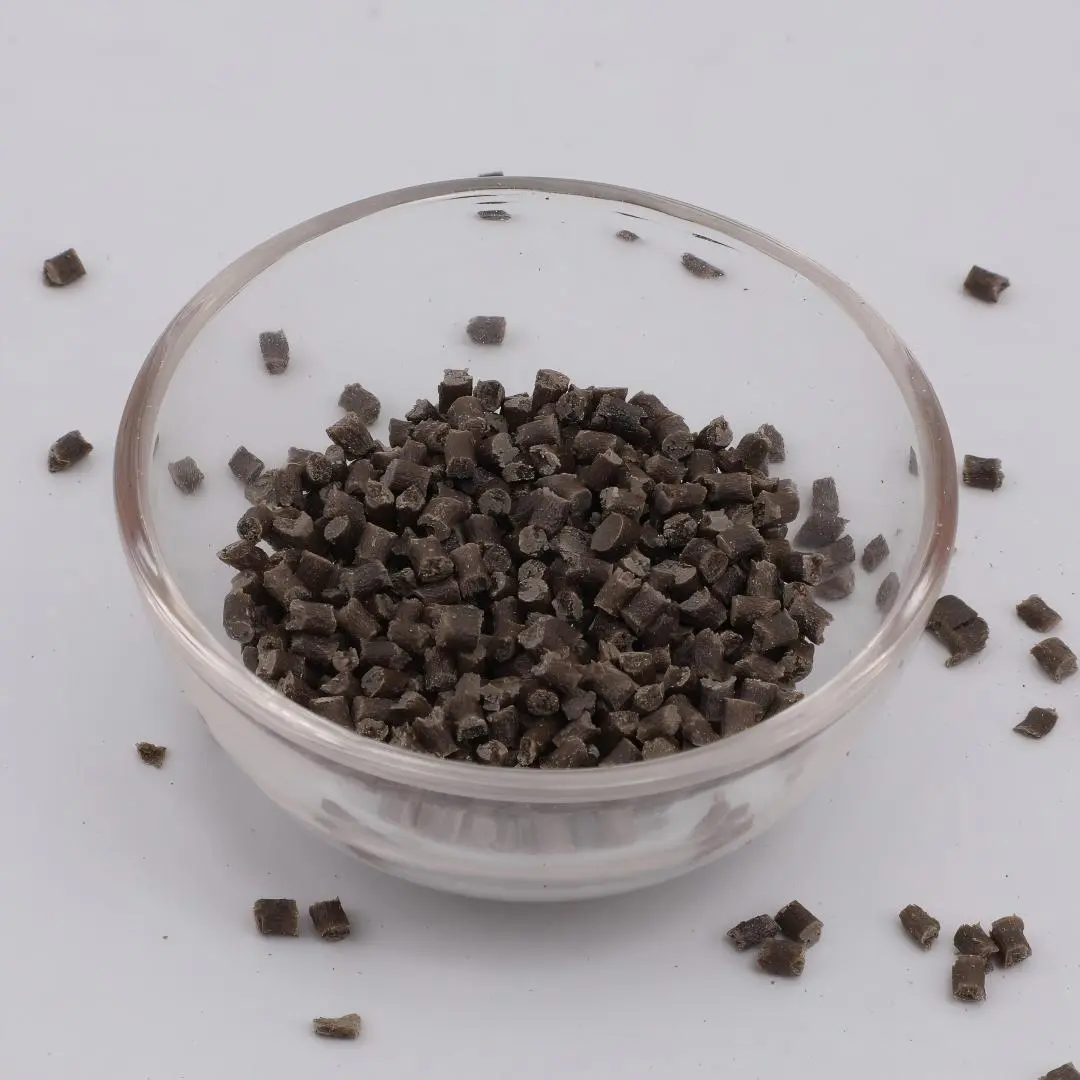

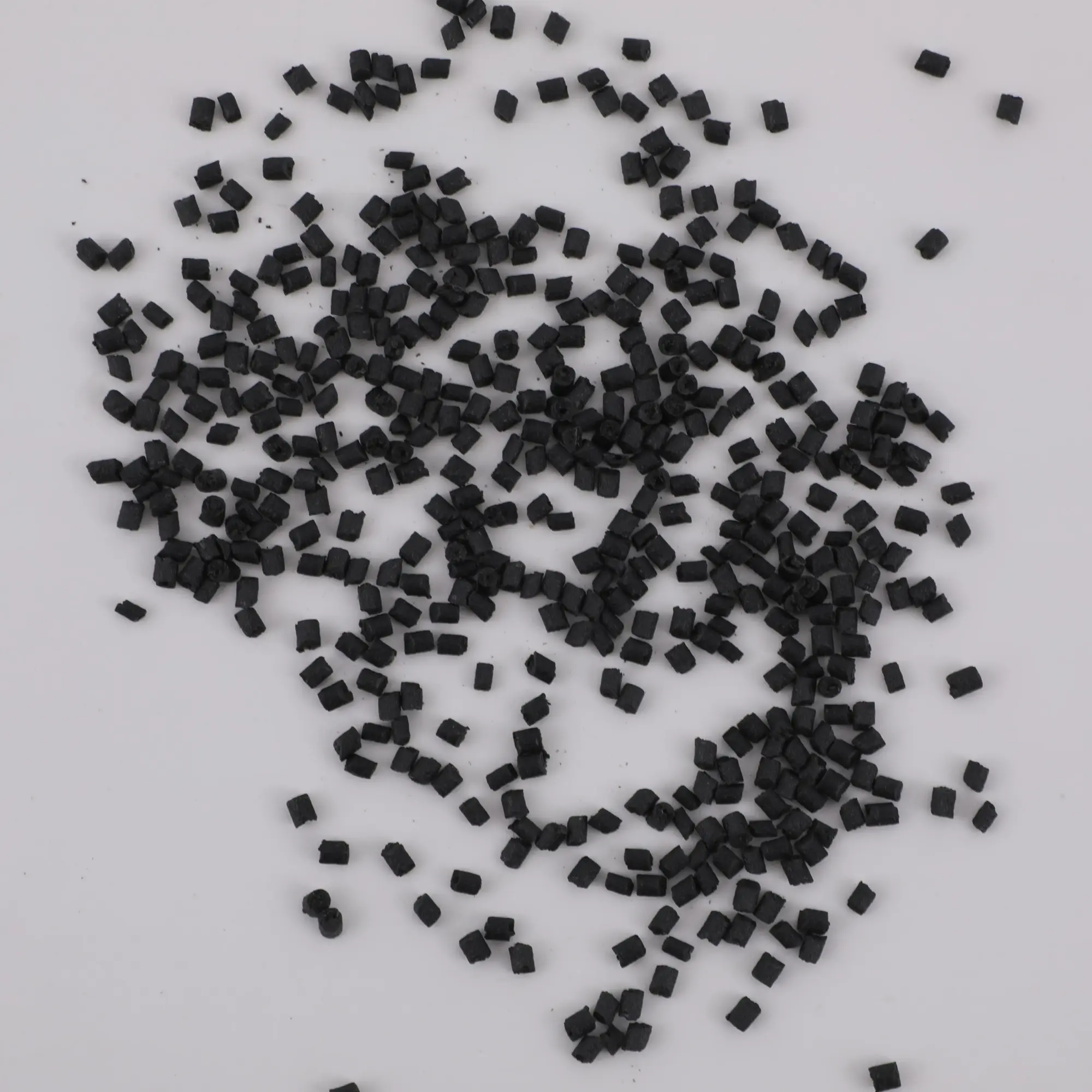

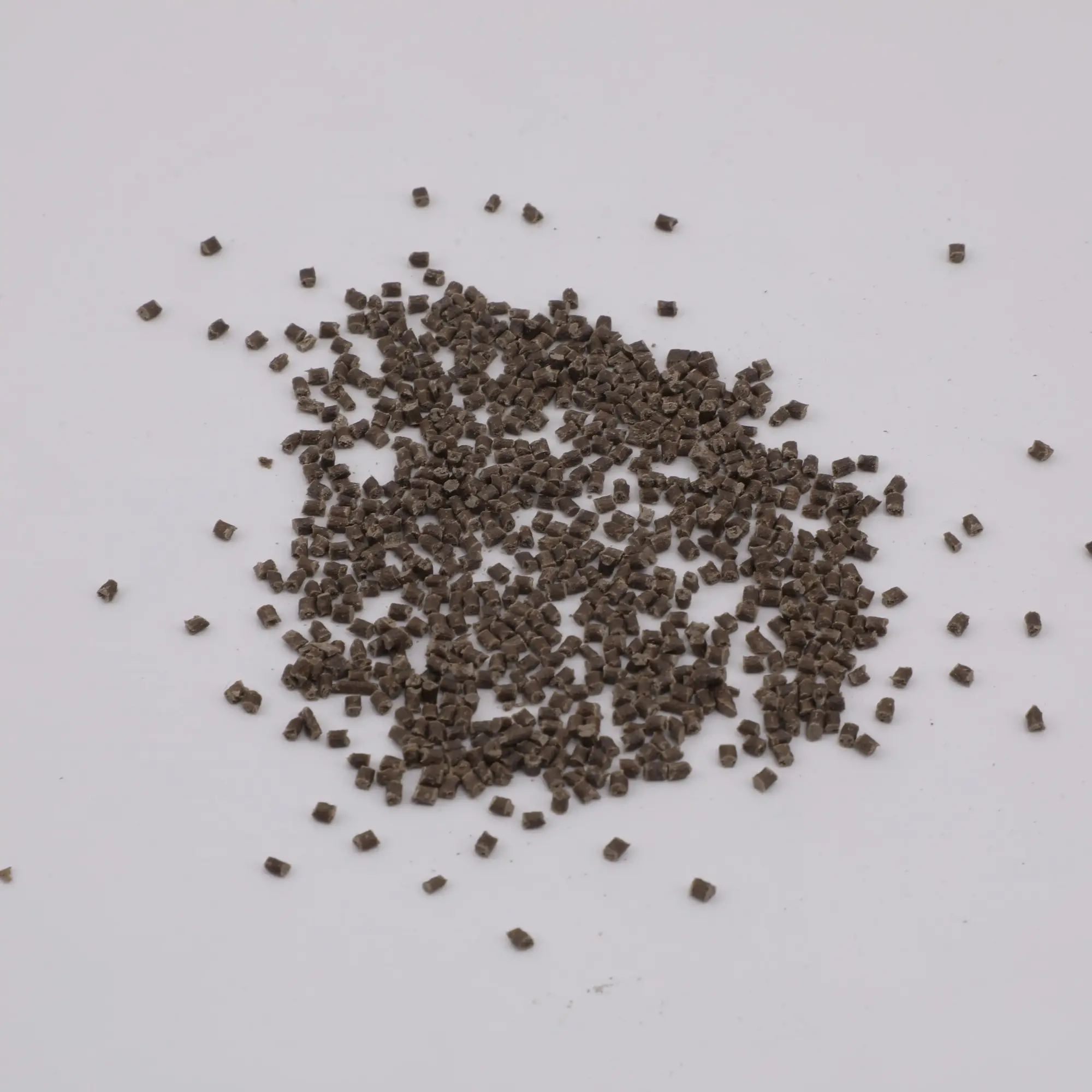

Ultem PEI 3452-1000 (SABIC Ultem 3452) is a 45% glass fiber and mineral filled polyetherimide resin specifically engineered for applications requiring extreme dimensional stability and minimal warpage. The hybrid filler system provides a unique balance of high stiffness (flexural modulus >12,400 MPa), low coefficient of thermal expansion, and excellent heat resistance (HDT 212°C). Enhanced flow characteristics allow molding of intricate, thin‑wall precision parts. The material is inherently flame retardant, achieving UL94 V0 and 5VA listings, and is RoHS compliant. Available in natural (3452-1000) and black (3452-7301). ISCC+ certified bio‑based solutions are also available.
Applications
-
Precision electrical/electronic components (connectors, sockets)
-
High‑tolerance automotive sensors and housings
-
Medical device structural parts
-
Semiconductor manufacturing equipment
-
Parts requiring metal‑like dimensional stability
Detailed Technical Properties (based on SABIC Ultem 3452 datasheet)
| Property | Typical Value | Unit | Test Method |
|---|---|---|---|
| Mechanical | |||
| Tensile Stress (break, Type I) | 131 | MPa | ASTM D638 |
| Tensile Strain (break) | 1.4 | % | ASTM D638 |
| Flexural Stress (break) | 179 | MPa | ASTM D790 |
| Flexural Modulus | 12410 | MPa | ASTM D790 |
| Impact | |||
| Izod Impact, notched (23°C) | 58 | J/m | ASTM D256 |
| Izod Impact, Reverse Notched | 218 | J/m | ASTM D256 |
| Thermal | |||
| HDT (1.82 MPa, 6.4 mm) | 212 | °C | ASTM D648 |
| CTE (flow, -40°C to 150°C) | 1.9E-05 | 1/°C | ISO 11359-2 |
| CTE (xflow, -40°C to 150°C) | 3.6E-05 | 1/°C | ISO 11359-2 |
| Relative Temp Index (Elec) | 180 | °C | UL 746B |
| Relative Temp Index (Mech w/impact) | 180 | °C | UL 746B |
| Relative Temp Index (Mech w/o impact) | 180 | °C | UL 746B |
| Physical | |||
| Specific Gravity | 1.66 | – | ASTM D792 |
| Mold Shrinkage (flow, 3.2 mm) | 0.15-0.25 | % | SABIC method |
| Mold Shrinkage (xflow, 3.2 mm) | 0.3-0.5 | % | SABIC method |
| Melt Flow Rate (337°C/6.6kg) | 4.6 | g/10 min | ASTM D1238 |
| Electrical | |||
| Comparative Tracking Index (UL) | 150+ | V | UL 746A |
| Flame Characteristics | |||
| UL94 Flammability | V0 & 5VA (thickness dependent) | – | UL 94 |
Injection Molding Parameters (recommended)
| Parameter | Value |
|---|---|
| Drying Temperature | 150 °C |
| Drying Time | 4-6 hours |
| Melt Temperature | 350-400 °C |
| Mold Temperature | 135-165 °C |
| Back Pressure | 0.3-0.7 MPa |
Download PDF Product Datasheet
Download Ultem PEI 3452 Technical Datasheet (PDF)
Price & Ordering Information
Price:
-
Natural Color (Ultem PEI 3452-1000): 18.00 USD/kg
-
Black Version (Ultem PEI 3452-7301): 18.00 USD/kg
Minimum Order Quantity (MOQ): Please contact us for MOQ details.
Bulk Purchase Discount: Volume pricing available. Please inquire for a customized quote.
For MOQ, bulk discounts, and lead times, please contact our sales team.
Additional information
| Color | Ultem PEI 3452-1000 Natural, Ultem PEI 3452-7301 Black |
|---|
