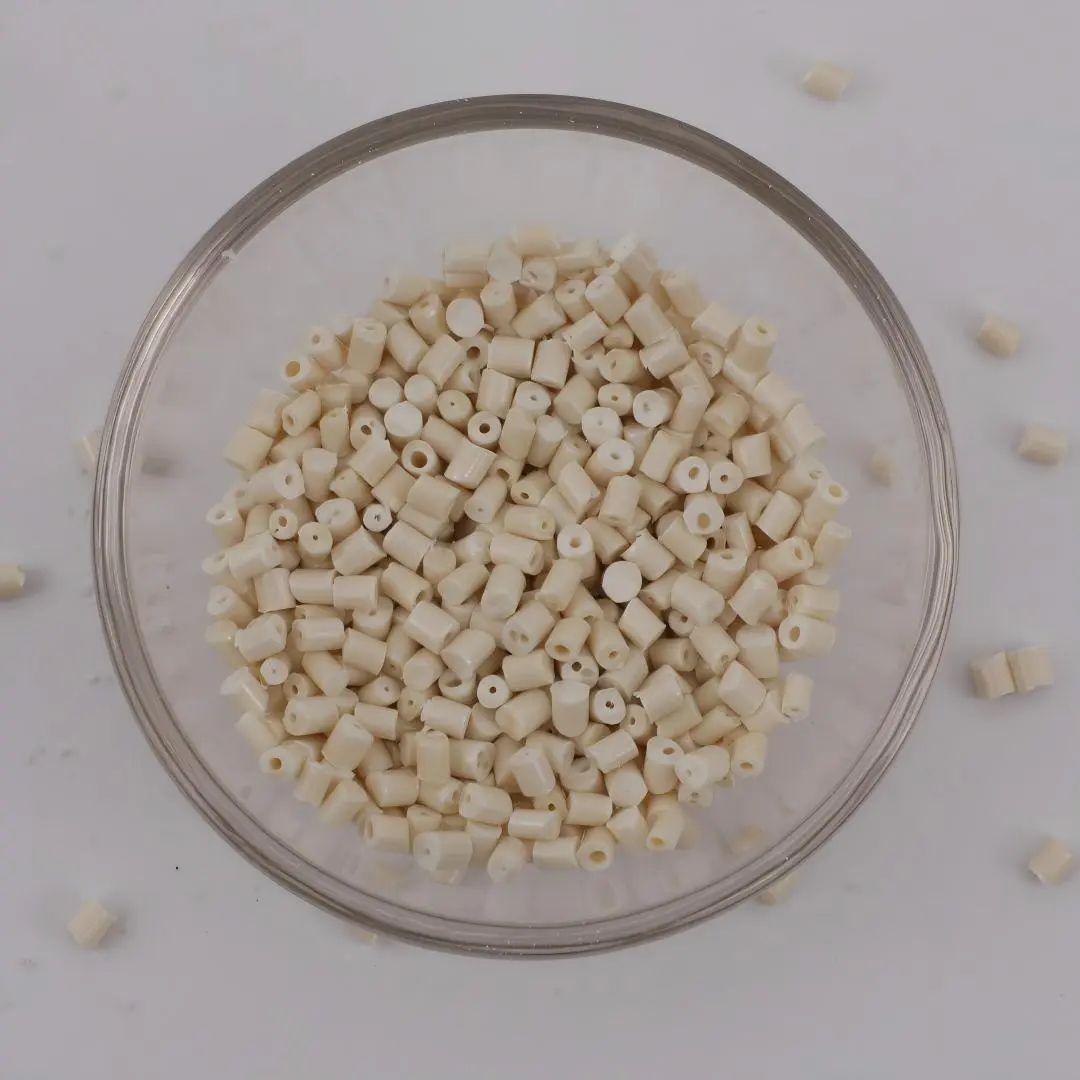

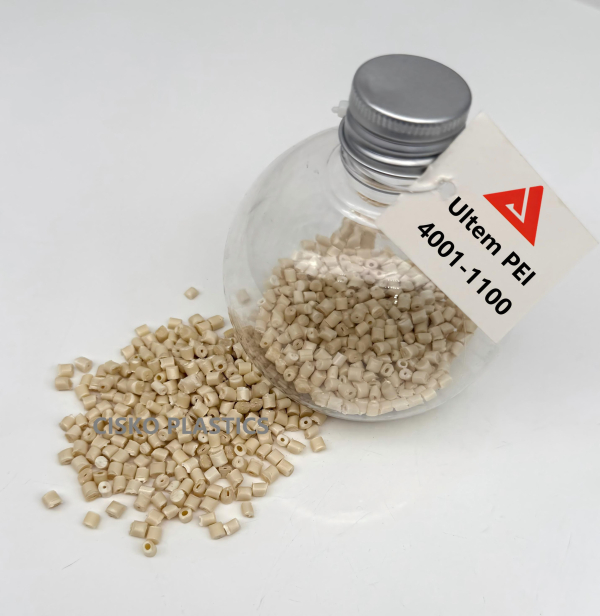

Ultem PEI 4001-1100 / 4001-7402 | PTFE Filled PEI Resin
Price range: $18.00 through $36.00
Ultem PEI 4001-1100 is a PTFE (polytetrafluoroethylene) filled polyetherimide (PEI) resin designed for improved wear resistance and reduced friction. It retains the high thermal stability (Tg 217°C), inherent flame retardancy (UL94 V0 & 5VA), and excellent mechanical properties of base PEI, while adding low friction and good impact strength. Ideal for non‑lubricated bearings, seals, and sliding components.
| Core Property | Value |
|---|---|
| Material Type | PTFE Filled PEI |
| Color | Natural / Black |
| Tensile Strength (yield) | 103-105 MPa (ASTM D638) |
| Flexural Modulus | 3400-3550 MPa |
| Notched Izod Impact (23°C) | 117 J/m (ASTM D256) |
| HDT (1.82 MPa, 6.4 mm) | 200 °C |
| Coefficient of Friction (Kinetic vs steel) | 0.25 |
| Flammability | UL94 V0 & 5VA |
| Tg | 217 °C |
Overview
Ultem PEI 4001-1100 (SABIC Ultem 4001) is a PTFE filled polyetherimide resin that combines the inherent high performance of PEI with the lubricity of PTFE. The addition of PTFE significantly improves sliding wear resistance and reduces friction without sacrificing the material’s excellent thermal stability (Tg 217°C, HDT 200°C), flame retardancy (UL94 V0 and 5VA), or mechanical strength. It offers improved impact resistance compared to many other filled PEI grades. This grade is RoHS compliant and available in natural (4001-1100) and black (4001-7402).
Applications
-
Non‑lubricated bearings and bushings
-
Mechanical seals and wear rings
-
Sliding components in automotive and industrial equipment
-
Gears and cams requiring low friction
-
Valve seats and pump components
-
Electrical connectors requiring wear resistance
Detailed Technical Properties (based on SABIC Ultem 4001 datasheet)
| Property | Typical Value | Unit | Test Method |
|---|---|---|---|
| Mechanical | |||
| Tensile Stress (yield, Type I) | 103-105 | MPa | ASTM D638 |
| Tensile Strain (break) | 40 | % | ASTM D638 |
| Tensile Modulus | 3350-3460 | MPa | ASTM D638 |
| Flexural Stress (yield) | 151-155 | MPa | ASTM D790 |
| Flexural Modulus | 3400-3550 | MPa | ASTM D790 |
| Hardness, Rockwell M | 110 | – | ASTM D785 |
| Taber Abrasion (CS-17, 1 kg) | 2 | mg/1000cy | ASTM D1044 |
| Tribological | |||
| Coefficient of Friction – Kinetic (vs steel) | 0.25 | – | ASTM D1894 |
| PV Limit (0.51 m/s) | 1.9 | MPa-m/s | SABIC method |
| K-factor (vs steel, PV=2000 psi·fpm) | 72 | x10⁻¹⁰ | SABIC method |
| K-factor (self, PV=2000 psi·fpm) | 27 | x10⁻¹⁰ | SABIC method |
| Impact | |||
| Izod Impact, notched (23°C) | 117 | J/m | ASTM D256 |
| Izod Impact, unnotched (23°C) | 534 | J/m | ASTM D4812 |
| Izod Impact, Reverse Notched | 1281 | J/m | ASTM D256 |
| Thermal | |||
| HDT (1.82 MPa, 6.4 mm) | 200 | °C | ASTM D648 |
| Relative Temp Index (Elec) | 170 | °C | UL 746B |
| Relative Temp Index (Mech w/impact) | 170 | °C | UL 746B |
| Relative Temp Index (Mech w/o impact) | 170 | °C | UL 746B |
| Physical | |||
| Specific Gravity | 1.33 | – | ASTM D792 |
| Mold Shrinkage (flow, 3.2 mm) | 0.5-0.7 | % | SABIC method |
| Melt Flow Rate (337°C/6.6kg) | 9.5-10.3 | g/10 min | ASTM D1238 |
| Flame Characteristics | |||
| UL94 Flammability | V0 & 5VA (thickness dependent) | – | UL 94 |
Injection Molding Parameters (recommended)
| Parameter | Value |
|---|---|
| Drying Temperature | 135-150 °C |
| Drying Time | 4-6 hours |
| Melt Temperature | 350-370 °C |
| Mold Temperature | 135-165 °C |
| Back Pressure | 0.3-0.7 MPa |
| Screw Speed | 40-70 rpm |
Download PDF Product Datasheet
Download Ultem PEI 4001 Technical Datasheet (PDF)
Price & Ordering Information
Price:
-
Natural Color (Ultem PEI 4001-1100): 18.00 USD/kg
-
Black Version (Ultem PEI 4001-7402): 18.00 USD/kg
Minimum Order Quantity (MOQ): Please contact us for MOQ details.
Bulk Purchase Discount: Volume pricing available. Please inquire for a customized quote.
For MOQ, bulk discounts, and lead times, please contact our sales team.
Additional information
| Color | Ultem PEI 4001-1100 Natural, Ultem PEI 4001-7402 Black |
|---|
