Ultem PEI 4000-1100 / 4000-7402 | Glass, PTFE & Graphite Filled PEI Resin
Original price was: $36.00.$18.00Current price is: $18.00.
Ultem PEI 4000-1100 is a glass fiber, PTFE, and graphite filled polyetherimide (PEI) resin engineered for superior wear resistance and low friction. It combines the high thermal and mechanical properties of PEI with excellent sliding performance, making it ideal for bearings, bushings, seals, and other moving parts. Inherently flame retardant (UL94 V0) and dimensionally stable.
| Core Property | Value |
|---|---|
| Material Type | Glass + PTFE + Graphite Filled PEI |
| Color | Natural / Black |
| Tensile Strength | 82 MPa (ASTM D638) |
| Flexural Modulus | 8820 MPa (ASTM D790) |
| HDT (1.82 MPa, 6.4 mm) | 212 °C |
| Coefficient of Friction (Kinetic) | 0.24 |
| Flammability | UL94 V0 (0.84 mm) |
| Tg | 217 °C |
Ultem PEI 4000-1100 is a glass fiber, PTFE, and graphite filled polyetherimide (PEI) resin engineered for superior wear resistance and low friction. It combines the high thermal and mechanical properties of PEI with excellent sliding performance, making it ideal for bearings, bushings, seals, and other moving parts. Inherently flame retardant (UL94 V0) and dimensionally stable.
| Core Property | Value |
|---|---|
| Material Type | Glass + PTFE + Graphite Filled PEI |
| Color | Natural / Black |
| Tensile Strength | 82 MPa (ASTM D638) |
| Flexural Modulus | 8820 MPa (ASTM D790) |
| HDT (1.82 MPa, 6.4 mm) | 212 °C |
| Coefficient of Friction (Kinetic) | 0.24 |
| Flammability | UL94 V0 (0.84 mm) |
| Tg | 217 °C |
Full Description (with detailed technical data table)
Overview
Ultem PEI 4000-1100 (SABIC Ultem 4000) is a specially compounded polyetherimide resin containing glass fiber for strength, PTFE for lubricity, and graphite for wear resistance. This unique combination delivers outstanding tribological performance while retaining the inherent flame retardancy, high heat deflection temperature (212°C), and dimensional stability of PEI. The material is ideal for metal replacement in moving or sliding applications where lubrication is difficult or undesirable. It is RoHS compliant and available in natural (4000-1100) and black (4000-7402).
Applications
-
Non‑lubricated bearings and bushings
-
Wear rings and thrust washers
-
Pump and compressor components
-
Gear and cam followers
-
Automotive transmission components
-
Industrial slides and guides
Detailed Technical Properties (based on SABIC Ultem 4000 datasheet)
| Property | Typical Value | Unit | Test Method |
|---|---|---|---|
| Mechanical | |||
| Tensile Stress (break, Type I) | 82 | MPa | ASTM D638 |
| Tensile Strain (break) | 1.2 | % | ASTM D638 |
| Flexural Stress (yield) | 113 | MPa | ASTM D790 |
| Flexural Stress (break) | 137 | MPa | ASTM D790 |
| Flexural Modulus | 8820 | MPa | ASTM D790 |
| Hardness, Rockwell M | 85 | – | ASTM D785 |
| Taber Abrasion (CS-17, 1 kg) | 33 | mg/1000cy | ASTM D1044 |
| Tribological | |||
| Coefficient of Friction – Kinetic (vs steel) | 0.24 | – | ASTM D1894 |
| Coefficient of Friction – Static (vs steel) | 0.25 | – | ASTM D1894 |
| PV Limit (0.51 m/s) | 2.1 | MPa-m/s | SABIC method |
| K-factor (vs steel, PV=2000 psi·fpm) | 50 | x10⁻¹⁰ | SABIC method |
| K-factor (self, PV=2000 psi·fpm) | 1900 | x10⁻¹⁰ | SABIC method |
| Impact | |||
| Izod Impact, notched (23°C) | 64 | J/m | ASTM D256 |
| Izod Impact, unnotched (23°C) | 160 | J/m | ASTM D4812 |
| Izod Impact, Reverse Notched | 170 | J/m | ASTM D256 |
| Thermal | |||
| Vicat Softening Temp (B/50) | 233 | °C | ASTM D1525 |
| HDT (1.82 MPa, 6.4 mm) | 212 | °C | ASTM D648 |
| CTE (flow, -40°C to 40°C) | 1.62E-05 | 1/°C | ASTM E831 |
| Relative Temp Index (Elec) | 105 | °C | UL 746B |
| Relative Temp Index (Mech w/impact) | 105 | °C | UL 746B |
| Relative Temp Index (Mech w/o impact) | 105 | °C | UL 746B |
| Physical | |||
| Specific Gravity | 1.67 | – | ASTM D792 |
| Water Absorption (24hrs) | 0.11 | % | ASTM D570 |
| Mold Shrinkage (flow, 3.2 mm) | 0.2-0.3 | % | SABIC method |
| Melt Flow Rate (337°C/6.6kg) | 3.1 | g/10 min | ASTM D1238 |
| Electrical | |||
| Comparative Tracking Index (UL) | 150+ | V | UL 746A |
| Flame Characteristics | |||
| UL94 Flammability | V0 (0.84 mm) | – | UL 94 |
Injection Molding Parameters
| Parameter | Value |
|---|---|
| Drying Temperature | 135 °C |
| Drying Time | 4-6 hours |
| Melt Temperature | 350-370 °C |
| Mold Temperature | 135-165 °C |
| Back Pressure | 0.3-0.7 MPa |
| Screw Speed | 40-70 rpm |
Download PDF Product Datasheet
Download Ultem PEI 4000 Technical Datasheet (PDF)
Price & Ordering Information
Price:
-

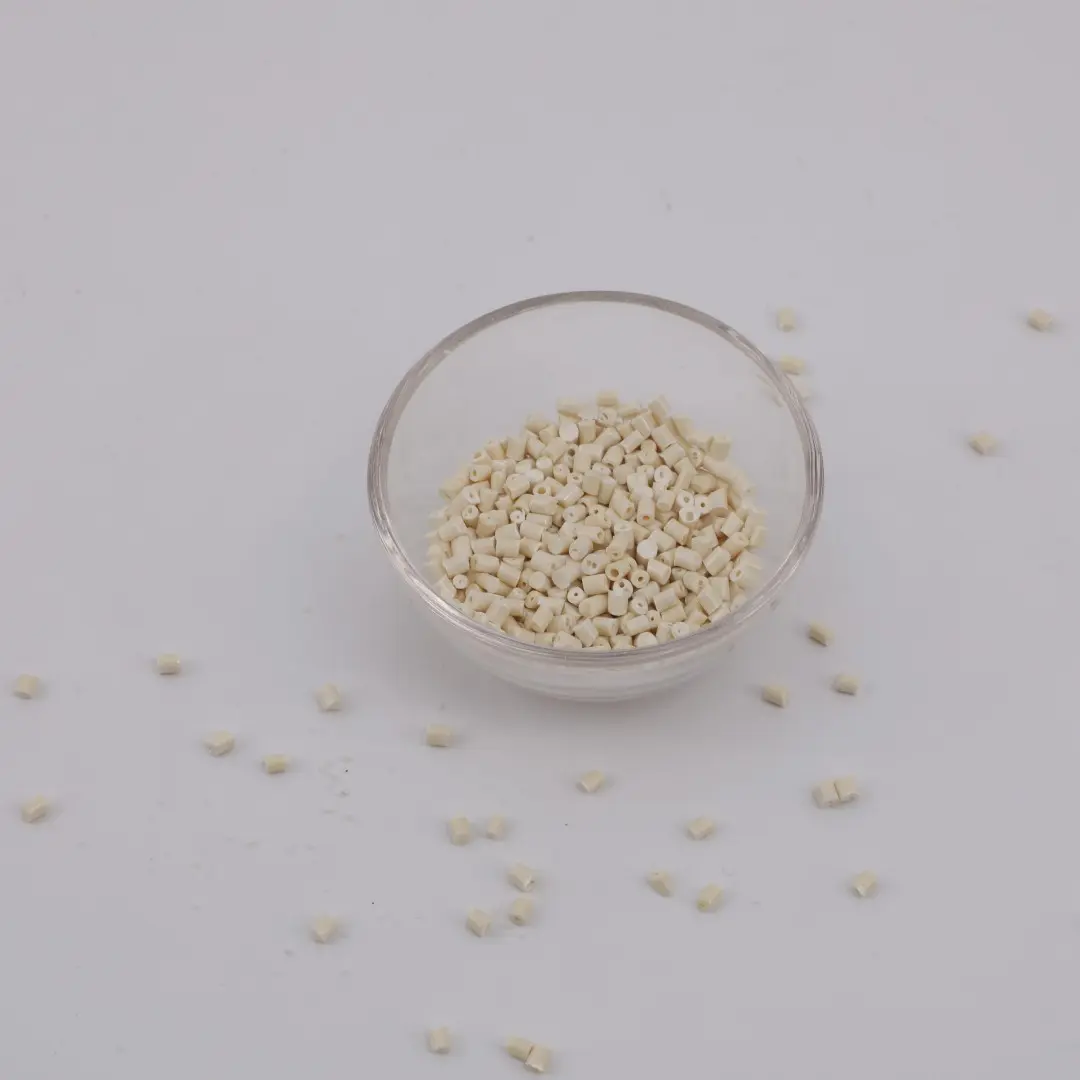

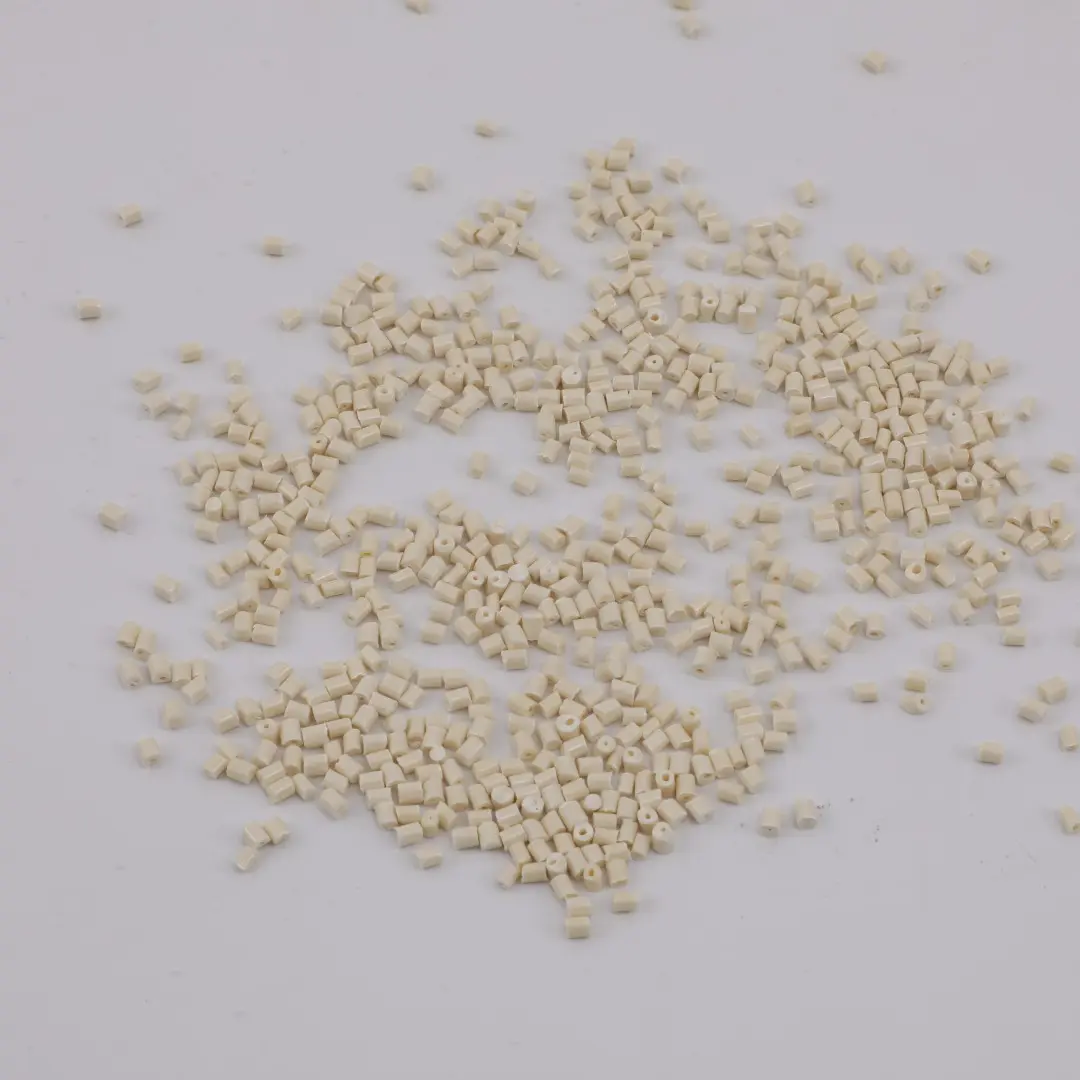

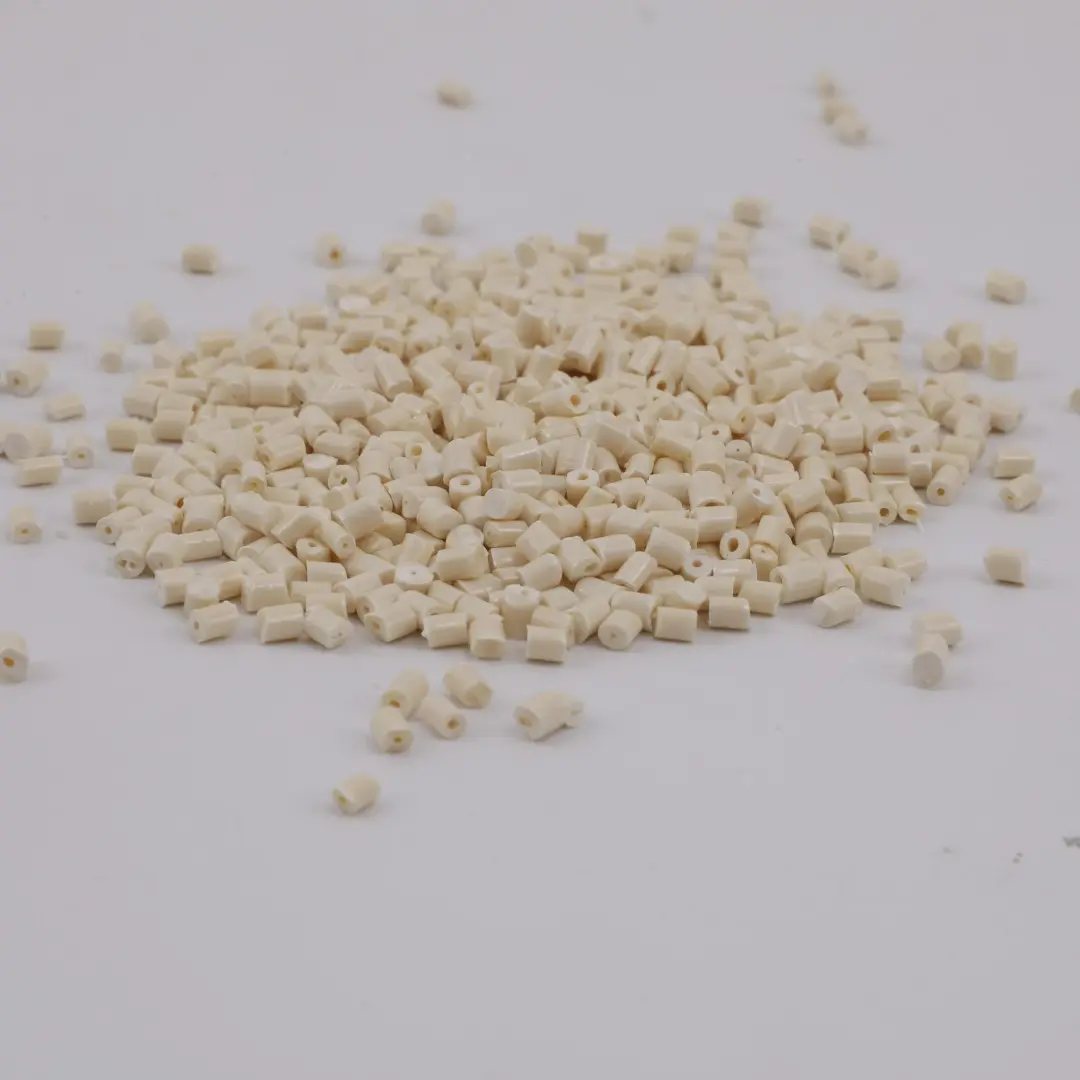

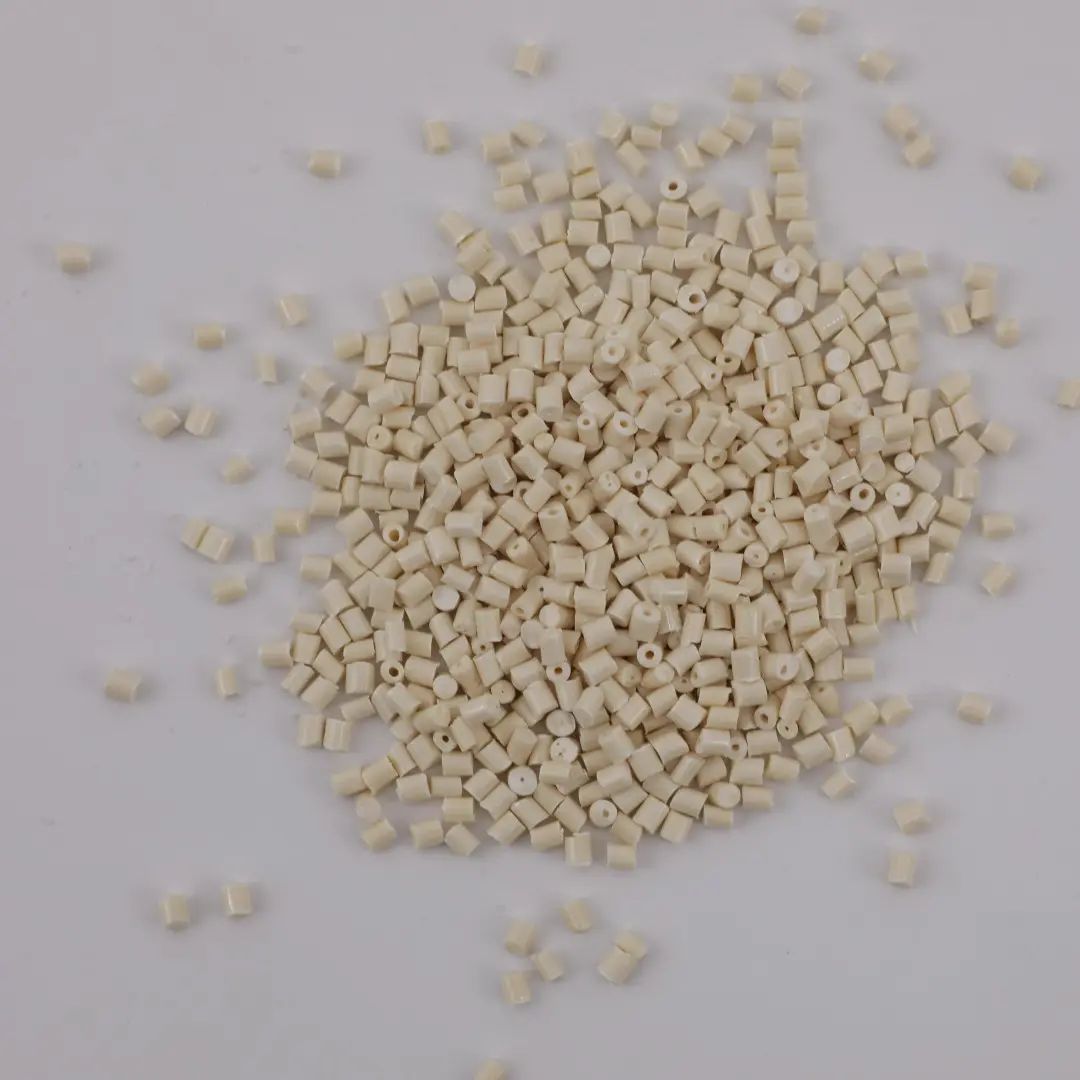

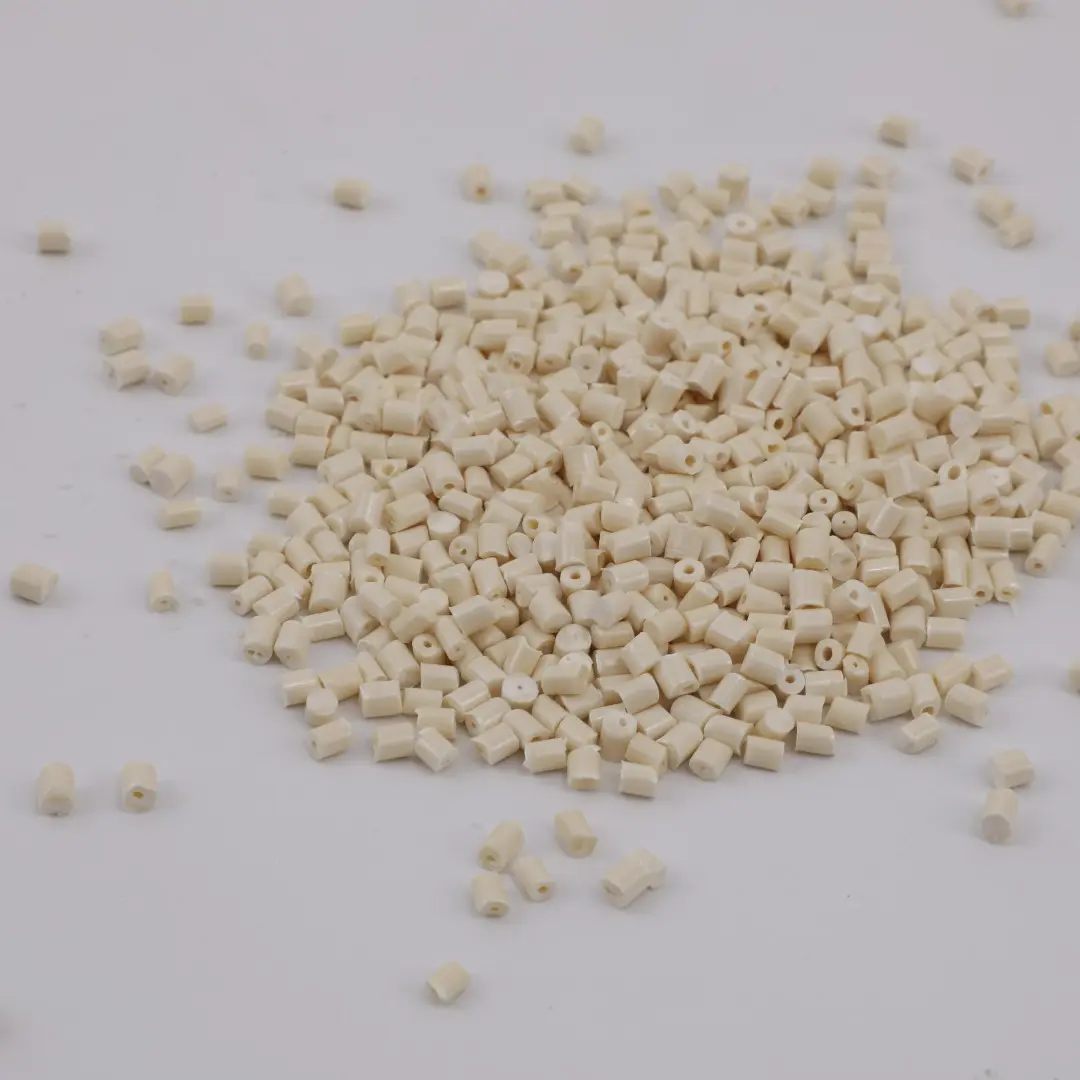

Natural Color (Ultem PEI 4000-1100): 18.00 USD/kg
-

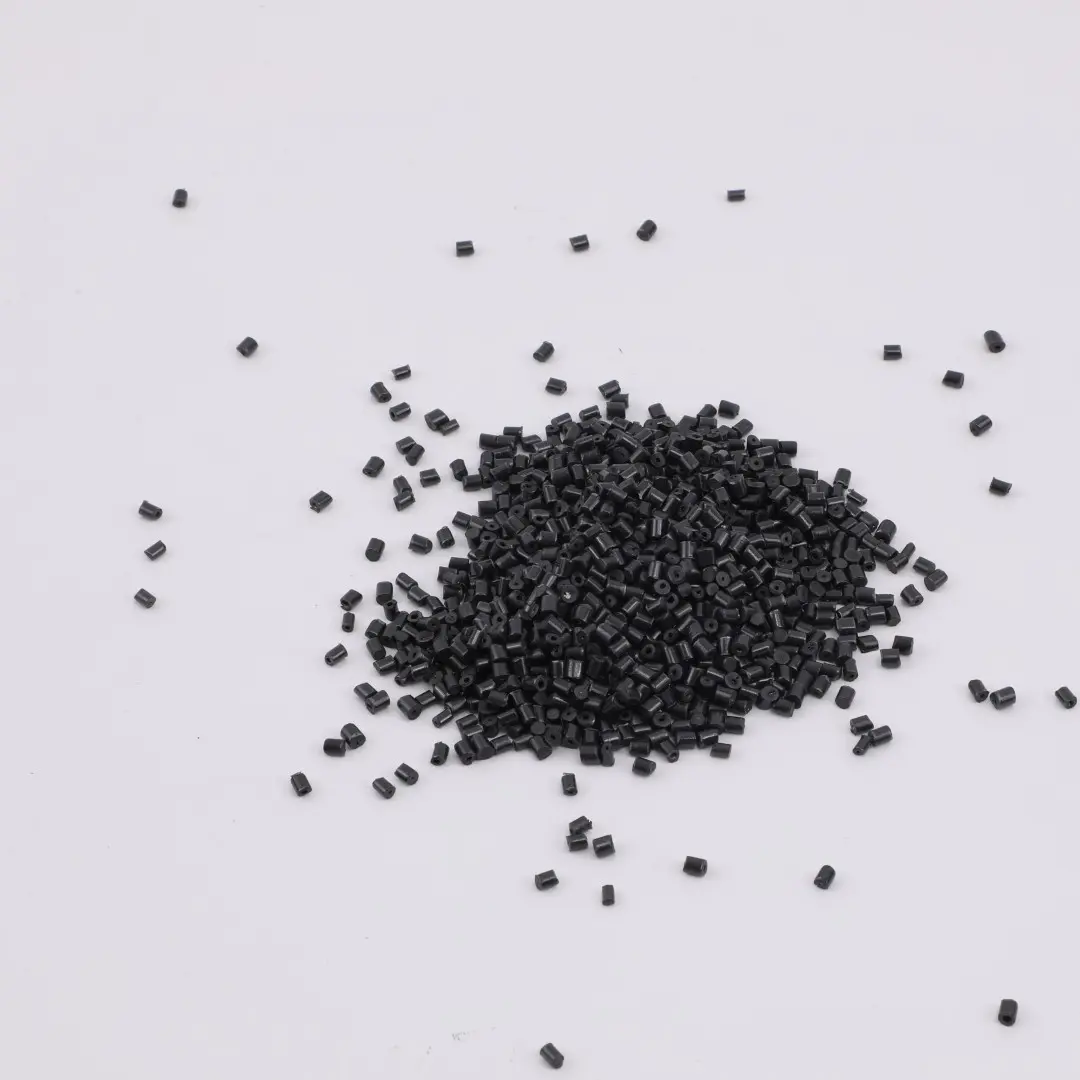

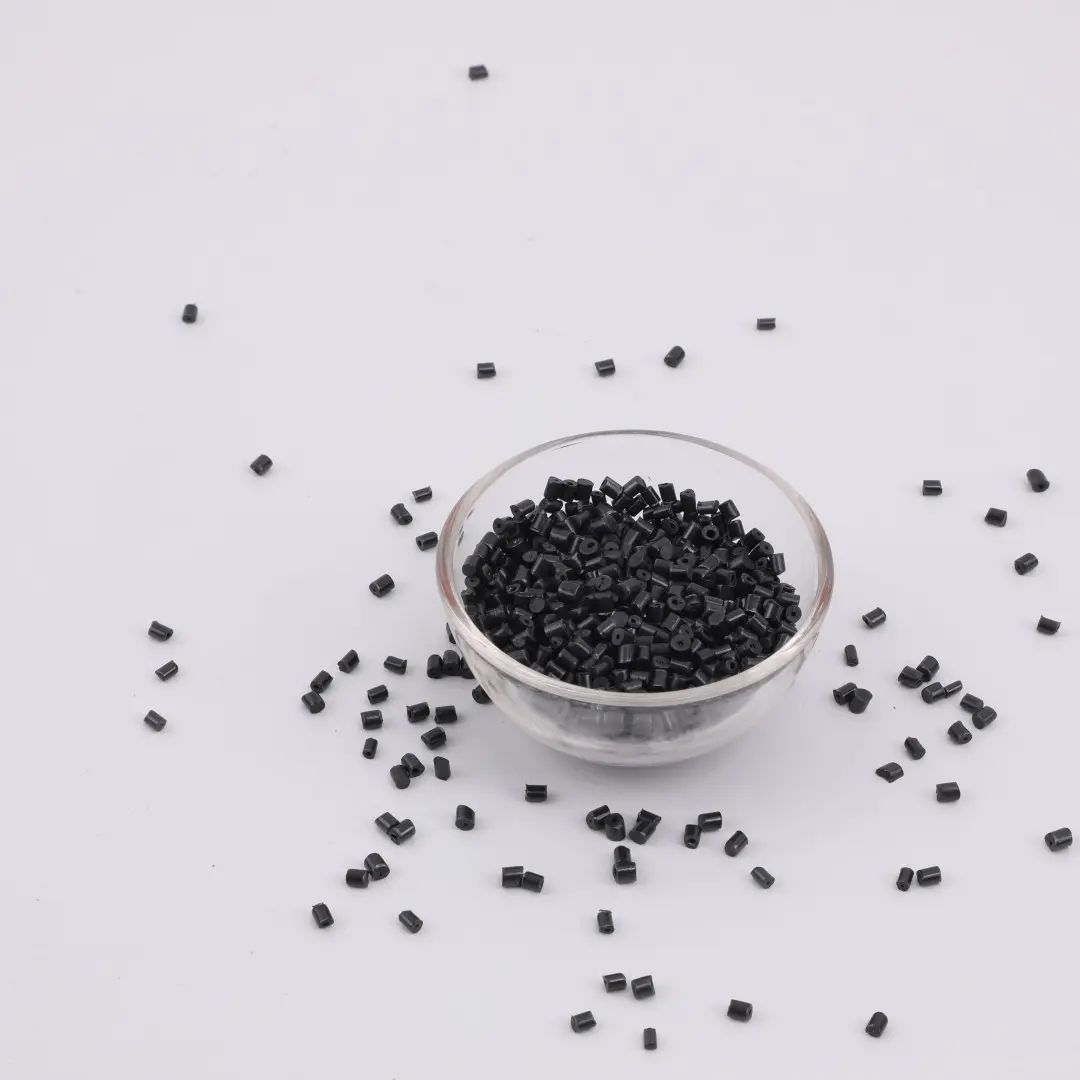

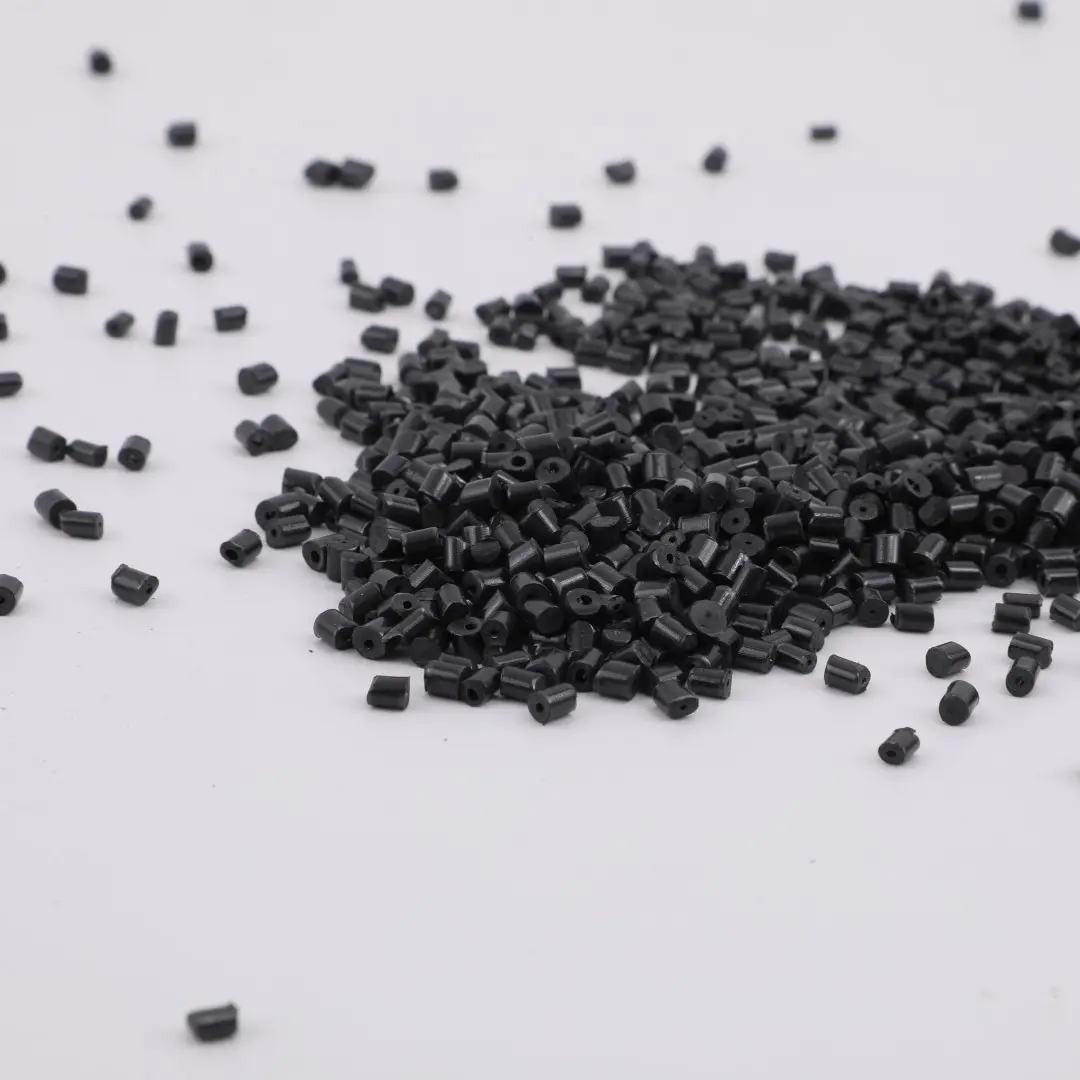

Black Version (Ultem PEI 4000-7402): 18.00 USD/kg
Minimum Order Quantity (MOQ): Please contact us for MOQ details.
Bulk Purchase Discount: Volume pricing available. Please inquire for a customized quote.
For MOQ, bulk discounts, and lead times, please contact our sales team.
Additional information
| Color | Ultem PEI 4000-1100 Natural, Ultem PEI 4000-7402 Black |
|---|
