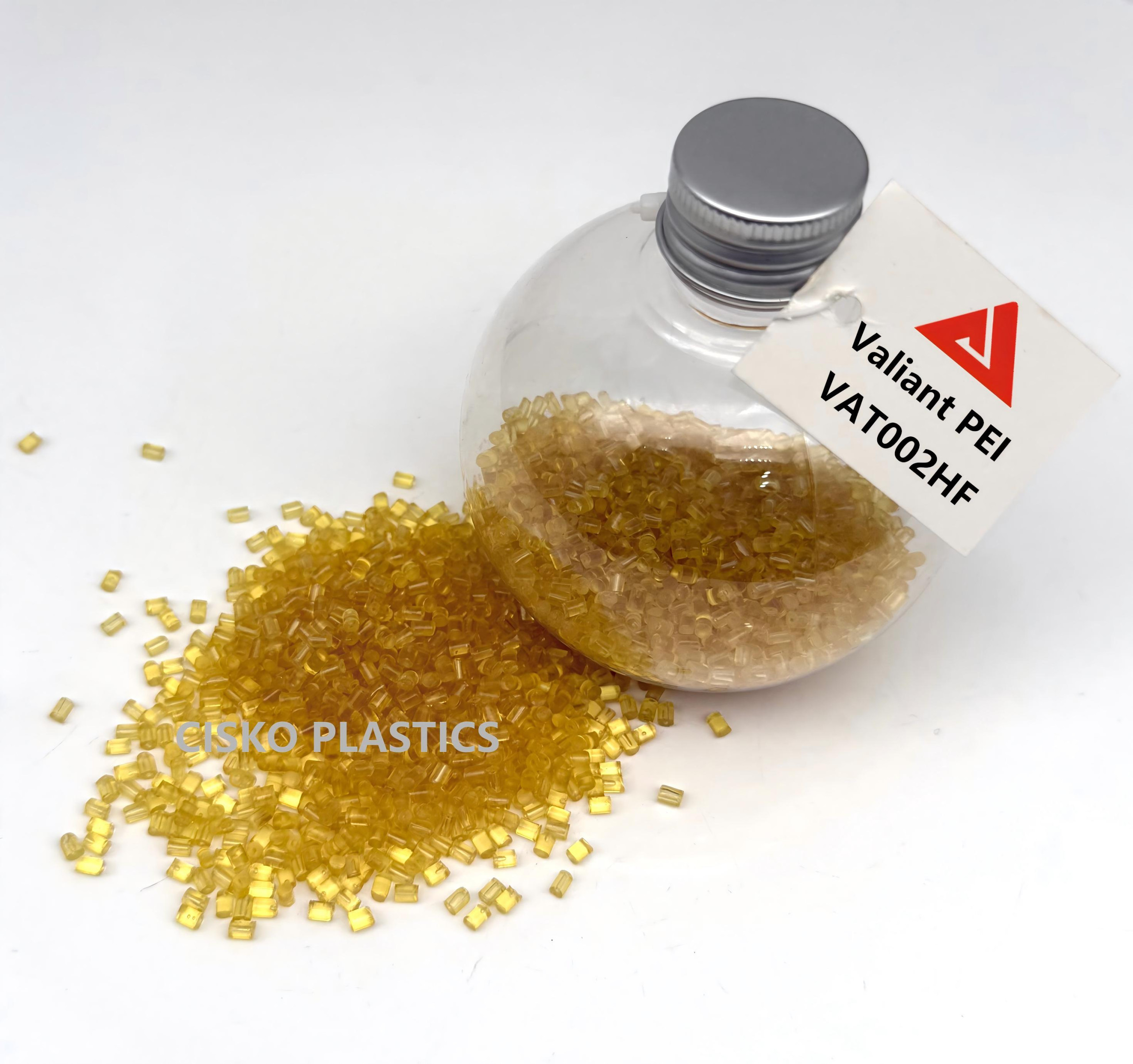

Valiant PEI VAT002HF – High Flow Polyetherimide Resin
Buy Valiant PEI VAT002HF (natural) and VAT002HFBK (black) high flow PEI resin. MFR 10–16 g/10 min, Tg 217°C, UL94 V-0. Ideal for thin-wall, complex geometries. Cost-effective alternative. Download datasheet.
Packaging Specifications: 25Kg/Bag
Original price was: 1,250.00$.625.00$Current price is: 625.00$.
Exclusive Offer:
Get quick checkout and fast shipping
100% Eco-certified
Better prices for bulk purchases
Returns within 30 days
Overview
Valiant PEI VAT002HF is an unreinforced amorphous PEI resin with a high Tg of 217°C and improved flow characteristics (MFR 10–16 g/10 min). This grade is specifically designed for applications requiring enhanced processability—thin-wall molding, long flow paths, and complex geometries. It retains the excellent mechanical, electrical, and dimensional properties of standard PEI while offering easier mold filling. Available in natural (VAT002HF) and black (VAT002HFBK).
Applications
-
Thin-wall electrical connectors and housings
-
Complex electronic components
-
5G infrastructure parts requiring intricate designs
-
Automotive sensor housings
-
Parts with long flow paths or difficult-to-fill geometries
Detailed Properties
| Property | Value | Unit | Test Method |
|---|---|---|---|
| Mechanical | |||
| Tensile Stress | 110 | MPa | ASTM D638 |
| Tensile Modulus | 3,400 | MPa | ASTM D638 |
| Elongation at Break | 55 | % | ASTM D638 |
| Flexural Strength | 150 | MPa | ASTM D790 |
| Flexural Modulus | 2,800 | MPa | ASTM D790 |
| Notched Impact Strength | 6.0 | kJ/m² | GB/T 1843 |
| Thermal | |||
| HDT (1.82 MPa) | 190 | °C | ASTM D648 |
| Tg | 217 | °C | GB/T 19466.2 |
| CLTE (MD/TD) | 48/51 | ppm/K | ASTM E831 |
| Electrical | |||
| Dielectric Strength (Air, 1.6mm) | 32 | kV/mm | IEC 60243-1 |
| Dielectric Constant (1MHz) | 3.0 | — | IEC 60250 |
| Dissipation Factor (1MHz) | 0.006 | — | IEC 60250 |
| Volume Resistivity | 10¹⁶ | Ω·cm | IEC 60093 |
| Surface Resistivity | >10¹⁶ | Ω | IEC 60093 |
| Physical | |||
| Density | 1.27 | g/cm³ | ISO 1183 |
| Melt Flow Rate (337°C/6.6kg) | 10–16 | g/10 min | ASTM D1238 |
| Mold Shrinkage | 0.5–0.7 | % | ISO 2577 |
Injection Molding Parameters
| Parameter | Value |
|---|---|
| Pre-Dry Temperature/Time | 160°C / 4–6 hrs |
| Mold Temperature | 130–180°C |
| Nozzle Temperature | 330–400°C |
| Front Temperature | 345–400°C |
| Middle Temperature | 340–400°C |
| Rear Temperature | 325–400°C |
Download PDF: [Valiant PEI VAT002HF Datasheet (PDF)]
